# vue使用cesium
- 安装
npm install cesium@1.95.0 --save
- 将node_modules/Build下的Cesium复制到public文件夹下面
<link href="./cesium/Widgets/widgets.css" rel="stylesheet">
<script src="./cesium/Cesium.js"></script>
//获取全局的Cesium
const Cesium = window.Cesium
- 或者在vue的main.js中引入
//全局引入Cesium
import 'cesium/Build/Cesium/Widgets/widgets.css'
import * as Cesium from 'cesium'
Vue.prototype.$Cesium = Cesium
window.Cesium = Cesium
- 封装自己的cesium方法，例如在src创建utils文件夹，在utils文件夹下面创建mCesium.js
import * as Cesium from 'cesium'
Cesium.Ion.defaultAccessToken ="token"; //这里的token是自己申请的token
window.CESIUM_BASE_URL = "/";
class mMap{
constructor(id){
this.id = id; //地图容器
this.viewer = null;
this.scene = null;
}
//初始化地图
initMap(){
console.log(this.id)
this.viewer = new Cesium.Viewer(this.id,{
geocoder: false, //是否显示地名查找控件
sceneModePicker: false, //是否显示投影方式控件
navigationHelpButton: false, //是否显示帮助信息控件
baseLayerPicker: false, //是否显示图层选择控件
homeButton: false, //是否显示Home按钮
fullscreenButton: false, //是否显示全屏按钮
animation: false, //左下角的动画控件的显示
shouldAnimate: false, //控制模型动画
timeline: false, //底部的时间轴
selectionIndicator: false,
infoBox: false
});
//定位到指定位置
this.viewer.camera.flyTo({
destination : Cesium.Cartesian3.fromDegrees(112.876942, 28.235312, 1500.0)
});
//去cesium logo水印 或 css
this.viewer.cesiumWidget.creditContainer.style.display = "none";
//创建场景
this.scene = this.viewer.scene;
if(!this.scene.pickPositionSupported){
window.alert("此浏览器不支持拾取位置！")
}
this.handler = new Cesium.ScreenSpaceEventHandler(this.viewer.canvas);
}
}
export function createMap(id){
window.map = new mMap(id)
}
}
- 使用
<template>
<div id="mMap"></div>
</template>
import { createMap} from './utils/cesium/mcesium'
mounted() {
createMap("mMap");
window.map.initMap()
}

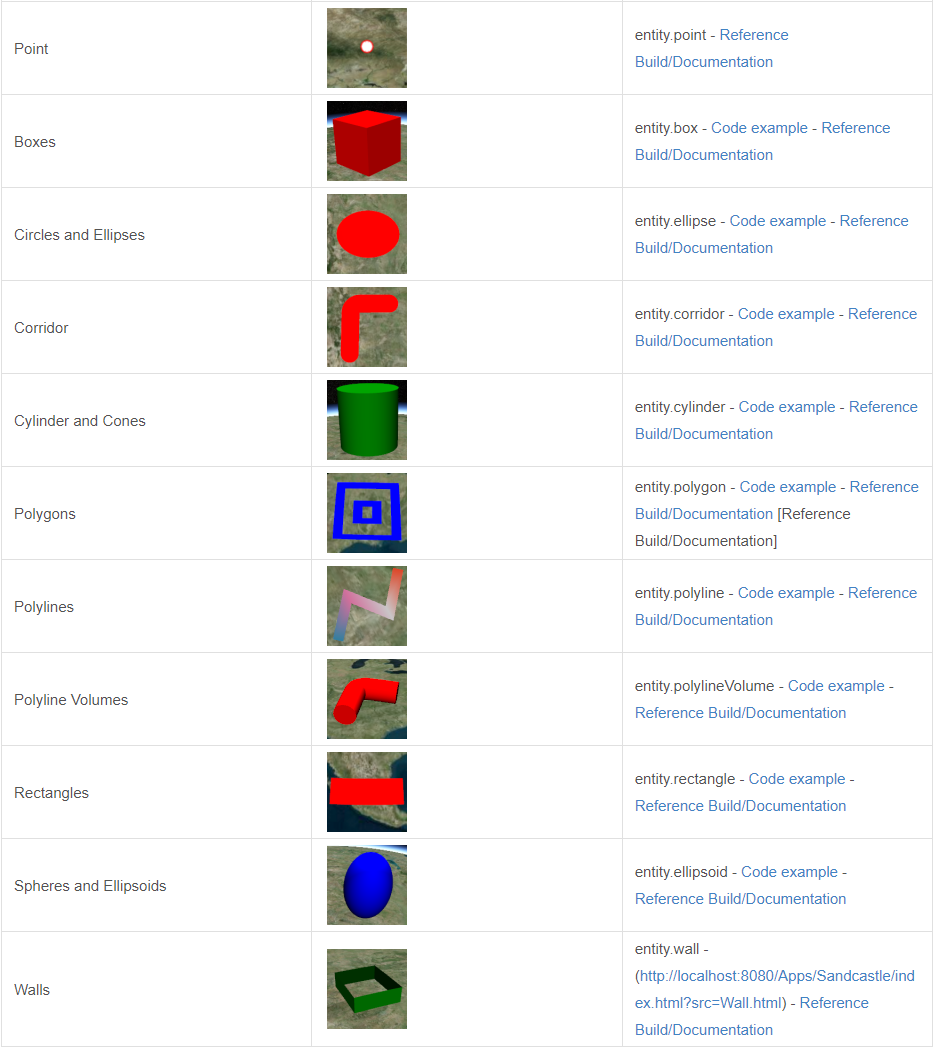

# 绘制不同的形状（Entity）
// 点实体
viewer.entities.add({
position: position, // 格式为世界坐标的点位置
point: {
show: ture, // 点是否可见
pixelSize: Number, // 点的大小
color: color, // 点的颜色
outlineClor: color, // 边框颜色
outlineWidth: Number, // 轮廓宽度
},
});
// 线实体
viewer.entities.add({
polyline: {
show: Boolean, // 线是否可见
positions: positions, // 格式为世界坐标的线位置数组
width: Number, // 线的宽度
material: color, // 线的颜色
clampToGround: Boolean, // 线是否固定在地面
},
});
// 面实体
viewer.entities.add({
polygon: {
show: Boolean, // 面是否可见
hierarchy: positions, // 格式为世界坐标的面位置数组
height: Number, // 面相对于椭球表面的高度
fill: Boolean, // 面是否有填充
material: color, // 面的填充颜色
outline: Boolean, // 面是否有边框
outlinColor: color, // 边框的颜色
outlineWidth: Number, // 边框的宽度，无论设置为多少宽度始终只会显示为 1
perPositionHeight: Boolean, // 面是否使用每个位置的高度
},
});
// 添加广告牌，也就是一张图片、图标数据
addEntityBillboard() {
let entityBillBoard = new Cesium.Entity({
id: 'EntityBillboard0',
name: 'EntityBillboard',
show: true,
description: '广告牌招租13390133157',
position: new Cesium.Cartesian3.fromDegrees(116.0, 39.9, 100),
billboard: {
image: 'static/image/ziranzaihai.png',
show: true,
sacle: 1000.01,
color: Cesium.Color.YELLOWGREEN,
width: 100,
height: 100
}
})
let billboadrGeom = window.viewer.entities.add(entityBillBoard)
window.viewer.zoomTo(entityBillBoard)
}
// 添加立方体实体。可以根据不同的材质进行设置box的外观
addEntityBox() {
var heading = Cesium.Math.toRadians(90.0)
var pitch = 0.0
var roll = 0.0
var hpr = new Cesium.HeadingPitchRoll(heading, pitch, roll)
var orientation = Cesium.Transforms.headingPitchRollQuaternion(position,hpr)
let entityBox = new Cesium.Entity({
id: 'entityBox0',
name: 'entityBox',
position: Cesium.Cartesian3.fromDegrees(111.0, 41.0),
orientation: orientation,
box: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
dimensions: new Cesium.Cartesian3(100000, 100000, 100000),
material: new Cesium.ImageMaterialProperty({
image: 'static/image/entityBillboard.ico',
color: Cesium.Color.YELLOWGREEN,
repeat: new Cesium.Cartesian2(16, 16),
transparent: true
}),
outline: true,
fill: true,
outlineColor: Cesium.Color.RED,
outlineWidth: 100
}
})
let boxGeom = window.viewer.entities.add(entityBox)
window.viewer.flyTo(entityBox, {
duration: 3,
maximumHeight: 1000,
offset: Cesium.HeadingPitchRange(1, 1, 1)
})
}
// 添加走廊通道实体，可以拉伸高度
addEntityCorridor() {
let entityCorridor = new Cesium.Entity({
id: 'entityCorridor0',
name: 'entityCorridor0',
position: Cesium.Cartesian3.fromDegrees(123.0, 43.0),
corridor: {
positions: Cesium.Cartesian3.fromDegreesArray([
123.0, 40.0, 122.0, 40.0, 123.0, 42.0, 121.0, 42.0
]),
width: 10000,
material: new Cesium.ImageMaterialProperty({
//可以设置贴图
// image: 'static/image/corridor.png',
color: Cesium.Color.YELLOWGREEN,
repeat: new Cesium.Cartesian2(32, 32)
// transparent: true
}),
extrudedHeight: 10000,
outline: false
}
})
let corridorGeom = window.viewer.entities.add(entityCorridor)
window.viewer.zoomTo(entityCorridor)
},
// 添加圆柱实体
addEntityCylinder() {
let entityCylinder = new Cesium.Entity({
id: 'entityCylinder0',
name: 'entityCylinder',
position: Cesium.Cartesian3.fromDegrees(116.0, 40.0, 50000),
cylinder: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
topRadius: 10000,
bottomRadius: 10000,
length: 20000,
material: new Cesium.ImageMaterialProperty({
// image: 'static/image/corridor.png',
color: Cesium.Color.fromCssColorString('#FFD700'),
transparent: false
})
}
})
let cylinderGeom = window.viewer.entities.add(entityCylinder)
window.viewer.zoomTo(entityCylinder)
}
// 添加椭圆实体,面状，可以拉伸成体
addEntityEllipse() {
let entityEllipse = new Cesium.Entity({
id: 'entityEllipse0',
name: 'entityEllipse',
position: Cesium.Cartesian3.fromDegrees(123.0, 45.0),
ellipse: {
semiMajorAxis: 100000,
semiMinorAxis: 60000,
material: Cesium.Color.fromRandom().withAlpha(1),
//拉伸
extrudedHeight: 100000,
heightReference: Cesium.HeightReference.CLAMP_TO_EDGE,
rotation: 0.9,
shadows: Cesium.ShadowMode.ENABLED
}
})
let ellipseCeom = window.viewer.entities.add(entityEllipse)
window.viewer.zoomTo(entityEllipse)
}
// 添加椭球实体
addEntityEllipsoid() {
this.trackedEntity = new Cesium.Entity({
id: 'EntityEllipsoid0',
name: 'EntityEllipsoid',
position: Cesium.Cartesian3.fromDegrees(111, 35, 100),
ellipsoid: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
radii: new Cesium.Cartesian3(30000, 50000, 30000),
material: Cesium.Color.fromRandom().withAlpha(1),
outline: true,
outlineColor: Cesium.Color.BLACK
}
})
let ellipsoidGeom = window.viewer.entities.add(this.trackedEntity)
window.viewer.zoomTo(this.trackedEntity)
},
// 添加文本标签， 可以根据缩放的程度控制标签大小或者显示与隐藏
addEntityLabel() {
let entityLabel = new Cesium.Entity({
id: 'entityLabel0',
name: 'entityLabel',
position: Cesium.Cartesian3.fromDegrees(123.5, 45.5, 1000),
label: {
text: '臣本布衣，躬耕于陇亩',
fillColor: Cesium.Color.YELLOWGREEN,
style: Cesium.LabelStyle.FILL_AND_OUTLINE,
showBackground: true,
backgroundColor: Cesium.Color(255, 255, 0),
scaleByDistance: new Cesium.NearFarScalar(1.5e2, 2.0, 1.5e7, 0.5),
translucencyByDistance: new Cesium.NearFarScalar(
1.5e2,
1.0,
1.5e8,
0.0
),
verticalOrigin: Cesium.VerticalOrigin.LEFT
}
})
let labelsGeom = window.viewer.entities.add(entityLabel)
window.viewer.zoomTo(entityLabel)
},
// 添加平面实体, 没有厚度
addEntityPlane() {
let entityPlane = new Cesium.Entity({
id: 'entityPlane0',
name: 'entityPlane',
position: Cesium.Cartesian3.fromDegrees(123.6, 45.8),
plane: {
plane: new Cesium.Plane(Cesium.Cartesian3.UNIT_Y, 0.0),
dimensions: new Cesium.Cartesian2(400000.0, 300000.0),
material: Cesium.Color.BLUE
}
})
let planeGeom = window.viewer.entities.add(entityPlane)
window.viewer.zoomTo(planeGeom)
},
// 添加类似管装线实体
addEntityPloylineVolum() {
let entityPolylineVolum = new Cesium.Entity({
id: 'EntityPloylineVolum',
name: 'addEntityPloylineVolum',
polylineVolume: {
positions: Cesium.Cartesian3.fromDegreesArray([
120.0, 40.0, 120.0, 45.0, 125.0, 45.0
]),
shape: [
new Cesium.Cartesian2(-10000, 0),
new Cesium.Cartesian2(10000, 0),
new Cesium.Cartesian2(20000, 17340),
new Cesium.Cartesian2(0, 37340),
new Cesium.Cartesian2(-20000, 17340)
],
material: Cesium.Color.YELLOWGREEN,
fill: true,
outline: true,
outlineColor: Cesium.Color.YELLOW,
outlineWidth: 10
}
})
let polylineVolume = window.viewer.entities.add(entityPolylineVolum)
window.viewer.zoomTo(polylineVolume)
}
// 添加矩形实体
addEntityRectangle() {
let entityRectangle = new Cesium.Entity({
id: 'entityRectangle0',
name: 'entityRectangle',
rectangle: {
// west, south, east, north
coordinates: Cesium.Rectangle.fromDegrees(120.0, 40, 125, 45),
// material: Cesium.Color.PURPLE.withAlpha(0.6),
material: 'static/image/hzw.png'
// outline: true, // height must be set for outline to display
// outlineColor: Cesium.Color.RED,
// extrudedHeight: 10000,
}
})
let rectangleGeom = window.viewer.entities.add(entityRectangle)
window.viewer.zoomTo(rectangleGeom)
},
// 添加墙实体
addEntityWall() {
let entityWall = new Cesium.Entity({
id: 'enttiyWall0',
name: 'entityWall',
wall: {
positions: Cesium.Cartesian3.fromDegreesArrayHeights([
123.0, 40.0, 100000, 123.5, 40.5, 12012, 124.0, 41.0, 210000, 124.5,
41.5, 220000, 125.0, 42.0, 52136
]),
material: new Cesium.ImageMaterialProperty({
image: 'static/image/corridor.png',
repeat: new Cesium.Cartesian2(32, 32)
})
}
})
let wallGeom = window.viewer.entities.add(entityWall)
window.viewer.zoomTo(entityWall)
}
// 点实体
viewer.entities.add({
position: position, // 格式为世界坐标的点位置
point: new Cesium.PointGraphics({
show: Boolean, // 点是否可见
pixelSize: Number, // 点的大小
color: color, // 点的颜色
outlineClor: color, // 边框宽度
outlineWidth: Boolean, // 轮廓颜色
});
});
// 线实体
viewer.entities.add({
golyline: new Cesium.PolylineGraphics({
show: Boolean, // 线是否可见
positions: positions, // 格式为 Cartesian3 的线位置数组
width: Number, // 线的宽度
material: color, // 线的颜色
clampToGround: Boolean, // 线是否固定在地面
});
});
// 面实体
viewer.entities.add({
golygon: new Cesium.PolygonGraphics({
show: Boolean, // 面是否可见
hierarchy: positions, // 格式为 Cartesian3 的面位置数组
height: Number, // 面相对于椭球表面的高度
fill: Boolean, // 面是否有填充
material: color, // 面的填充颜色
outline: Boolean, // 面是否有边框
outlinColor: color, // 边框的颜色
outlineWidth: Number, // 边框的宽度，无论设置为多少宽度始终只会显示为 1
perPositionHeight: Boolean, // 面是否使用每个位置的高度
});
});

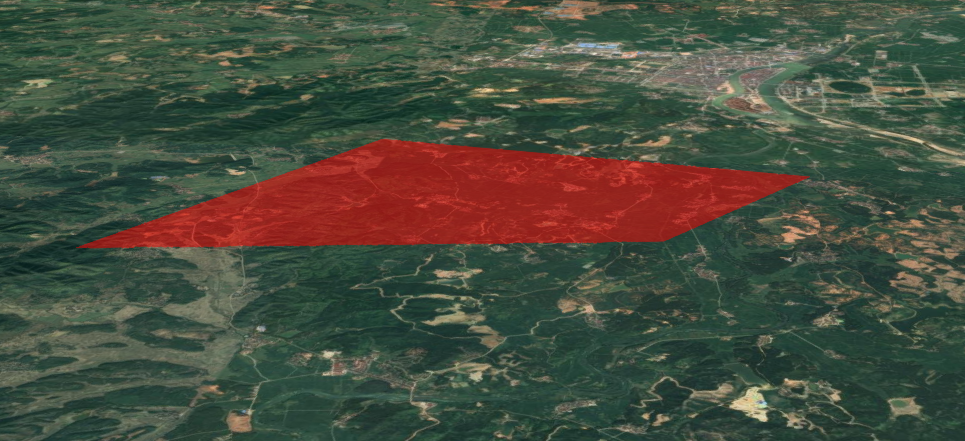

# polygon添加边界线不起作用
关于cesium添加polygon，有时需要添加边界线。但是设置outline不起作用，outline不起作用的原因
viewer.entities.add({
name: '等值线',
polygon: {
hierarchy: {
positions: Cesium.Cartesian3.fromDegreesArray(polyArr),
},
material: Cesium.Color.RED.withAlpha(1),
zIndex: zIndex,
height: zIndex * 10000, //多层次
outline: true,
outlineColor: Cesium.Color.BLACK,
outlineWidth:1,
}
});
首先说明一下绘制多个polygon中，zIndex和height的区别:
- 绘制多个polygon，相当于将多个polygon贴在地球表面
- zIndex的作用就是设置绘制的等级。zindex越高，绘制的polygon会贴在最上面
- height的作用则是在不同层次上绘制polygon。每个polygon的height不一样，则边界就会显现出来
所以outline不起作用的原因在于：多个polygon在同一height，没有设置height区分图层
所有polygon在同一图层上，outline不起作用
明白绘制不出原因后，就可以有两个解决思路：
- 设置zindex和height。如下：可以展示多维效果
viewer.entities.add({
name: '等值线',
polygon: {
hierarchy: {
positions: Cesium.Cartesian3.fromDegreesArray(polyArr),
},
material: Cesium.Color.RED.withAlpha(1),
zIndex: zIndex,
height: zIndex * 10000, //多层次
outline: true,
outlineColor: Cesium.Color.BLACK,
outlineWidth:1,
}
});
- 再绘制完polygon后，再循环一遍，同样的数据，绘制polyline
polyline:{
positions: Cesium.Cartesian3.fromDegreesArray(polyArr),
material: Cesium.Color.fromCssColorString(contourColor).withAlpha(1),
loop: true,
width: 2
}
# polygon中extrudedHeight 和 height 的区别
- height： 多边形的高度（多边形底部到地球表面的高度）
- extrudedHeight： extrudedHeight 根据情况不同所代表的高度是不同的

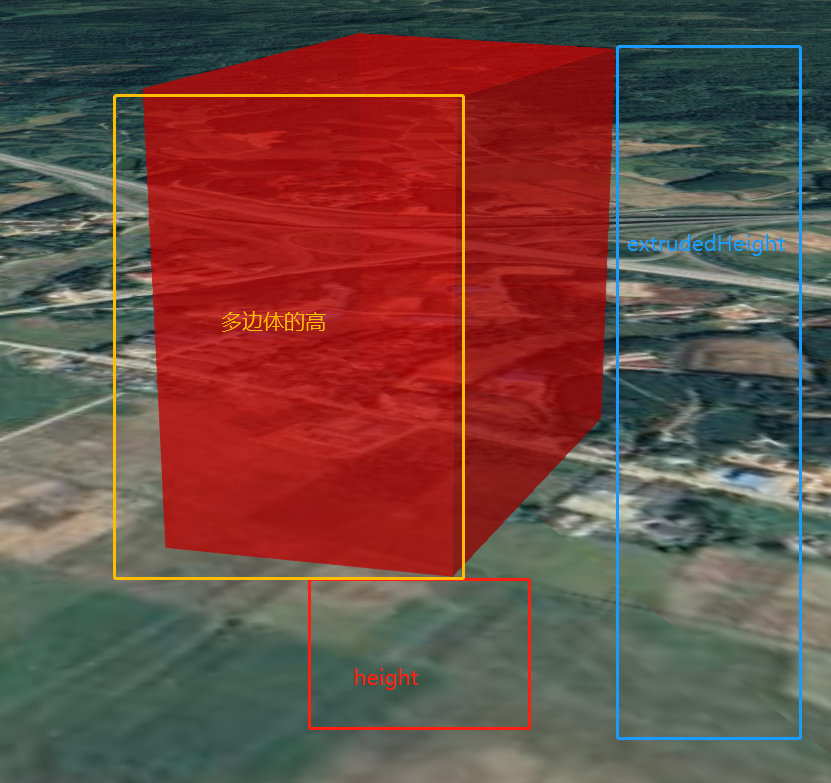

# extrudedHeight > height 情况
- height：多边形下表面到地球表面的高度
- extrudedHeight： 多边体的高度 + height`（多边形上表面到地球表面的高度）

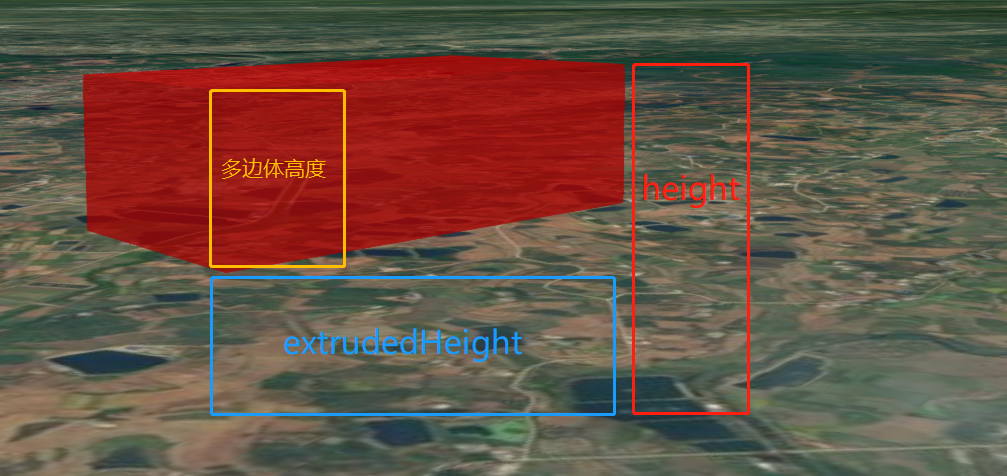

# extrudedHeight < height 情况
- height：多边形下表面到地球表面的高度
- extrudedHeight： height - 多边体的高度`（多边形下表面到地球表面的高度）
# extrudedHeight = height 情况
就是多边形的一个平面，不是多边体了
# 多边形中心点偏移问题解决
之前在网上搜到的获取中心点的方法如下：
var viewer = new Cesium.Viewer("cesiumContainer");
var polygon = viewer.entities.add({
name: "Red polygon on surface",
polygon: {
hierarchy: Cesium.Cartesian3.fromDegreesArray([-115.0,37.0,-115.0,32.0,-107.0,33.0]),
material: Cesium.Color.RED.withAlpha(0.5),
},
});
var polyPositions = polygon.hierarchy.getValue(Cesium.JulianDate.now()).positions;
var polyCenter = Cesium.BoundingSphere.fromPoints(polyPositions).center;//中心点
polyCenter = Cesium.Ellipsoid.WGS84.scaleToGeodeticSurface(polyCenter);
// 添加label
redPolygon.label={
position: polyCenter,
text:'polygon title',
color : Cesium.Color.fromCssColorString('#fff'),
font:'normal 32px MicroSoft YaHei',
showBackground : true,
scale : 0.5,
color: Cesium.Color.fromCssColorString('#fff'),
font: 'normal 32px MicroSoft YaHei',
showBackground: true,
scale: 0.5,
verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
horizontalOrigin: Cesium.HorizontalOrigin.CENTER,
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
};
viewer.zoomTo(viewer.entities);
但是如果多边形不太规则或者点比较多的情况下，标记的位置就不在中心点了，会有偏移，boundingsphere 计算的中心点是外接圆的圆心，所以导致了中心点会在图形外
// 多边形的坐标集合(如果已经获取到了，就跳过这一步)
var polygon_point_arr = polygon_point_entity.polygon.hierarchy.getValue(Cesium.JulianDate.now()).positions;
// 保存转换后的点数组，这个格式必须按照 turf 的要求来
let turf_arr = [[]];
// 坐标转换
polygon_point_arr.forEach(val => {
let polyObj = {}
// 空间坐标转世界坐标(弧度) 同 Cesium.Cartographic.fromCartesian
let cartographic = viewer.scene.globe.ellipsoid.cartesianToCartographic(val)
// 弧度转为角度（经纬度）
polyObj.lon = Cesium.Math.toDegrees(cartographic.longitude)
polyObj.lat = Cesium.Math.toDegrees(cartographic.latitude)
turf_arr[0].push([polyObj.lon, polyObj.lat])
})
// turf 需要将整个点闭合，所以最后一个点必须和起点重合。
turf_arr[0].push(turf_arr[0][0])
let turf_position = turf.polygon(turf_arr)
let turf_position_point = turf.centerOfMass(turf_position)
// 设置点标记坐标
polygon_point_entity.position = Cesium.Cartesian3.fromDegrees(turf_position_point.geometry.coordinates[0], turf_position_point.geometry.coordinates[1], 0)
// 添加点标记
polygon_point_entity.label = {
// 点标记参数
}
# 动态绘制点、线、面
# 动态绘制点
在鼠标移动事件中，第一次触发移动事件时，就创建一个点实体，以后触发移动事件时就先删除上一次触发移动事件创建的实体，再创建一个新的实体
# 动态绘制线
动态绘制线与动态绘制点相似，但是，在绘制过程中， polyline 中的 positions 属性值需要使用 Cesium.CallbackProperty() 方法来获取
viewer.entities.add({
polyline: {
positions: new Cesium.CallbackProperty(function() {
return positions;
}, false),
material: Color,
width: Number,
}
});
# 动态绘制面
动态绘制面与动态绘制线相似，但是，在 polygon 中的 hierarchy 属性值除需要使用 Cesium.CallbackProperty() 方法来获取外，还需要使用 Cesium.PolygonHierarchy() 返回
viewer.entities.add({
polygon: {
hierarchy: new Cesium.CallbackProoerty(function() {
return new Cesium.PolyHierarchy(positions);
}, false),
material: Color,
}
});
# 面的编辑
初始化变量
// 创建监听的handler
this.handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
// 用于保存实体的对象
let gon = undefined;
// 判断是否处于编辑状态
let isEditting = false;
// 设置当前的编辑点
let currentPoint = undefined;
// 清空编辑点ID数组
this.pointsId = [];
创建鼠标按下的监听事件
// 对鼠标按下事件的监听
this.handler.setInputAction((event) => {
// 获取屏幕坐标
let windowPosition = event.position;
// 通过屏幕坐标获取当前位置的实体信息
let pickedObject = viewer.scene.pick(windowPosition);
// 如果实体信息存在则说明该位置存在实体
if (Cesium.defined(pickedObject)) {
// 获取当前点的实体
let entity = pickedObject.id;
// 如果实体为面同时没有处于编辑状态，那么保存面的实体
if (entity.name === "polygon" && !isEditting) {
gon = entity;
// 生成编辑点
for (let cartesian of gon.polygon.hierarchy._value) {
let point = viewer.entities.add({
name: "gon_point",
position: cartesian,
point: {
color: Cesium.Color.WHITE,
pixelSize: 8,
outlineColor: Cesium.Color.BLACK,
outlineWidth: 1
}
});
// 保存点的ID以便删除
this.pointsId.push(point.id);
}
// 设置编辑状态为true
isEditting = true;
// 禁止地球旋转和缩放，地球的旋转会对鼠标移动监听有影响，所以需要禁止
viewer.scene.screenSpaceCameraController.enableRotate = false;
viewer.scene.screenSpaceCameraController.enableZoom = false;
} else if (entity.name === "gon_point") {
// 如果实体为编辑点，那么设置当前编辑点为该点
currentPoint = entity;
}
}
}, Cesium.ScreenSpaceEventType.LEFT_DOWN);
创建鼠标移动的监听事件
// 对鼠标移动事件的监听
this.handler.setInputAction((event) => {
// 如果处于编辑状态且编辑点已定义，那么开始拖拽编辑
if (isEditting && currentPoint) {
// 获取屏幕坐标，移动监听与点击有所不同，所以有起始位置和终点位置
let windowPosition = event.startPosition;
// 将屏幕坐标转为笛卡尔坐标
let ellipsoid = viewer.scene.globe.ellipsoid;
let cartesian = viewer.camera.pickEllipsoid(windowPosition, ellipsoid);
// 如果点击到地球外，那么返回
if (!cartesian) {
return;
}
// 更新编辑点的位置
currentPoint.position = cartesian;
// 创建面标每个点位置信息的数组，并循环赋值
let points = [];
for (let id of this.pointsId) {
points.push(viewer.entities.getById(id).position._value);
}
// 更新面标的位置数组
gon.polygon.hierarchy = new Cesium.CallbackProperty(() => {
return points;
}, false);
}
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
创建鼠标抬起的监听事件
// 对鼠标抬起事件的监听
this.handler.setInputAction((event) => {
// 移除当前编辑点
currentPoint = undefined;
}, Cesium.ScreenSpaceEventType.LEFT_UP)
结束编辑
// 恢复地球的旋转和缩放
viewer.scene.screenSpaceCameraController.enableRotate = true;
viewer.scene.screenSpaceCameraController.enableZoom = true;
// 移除监听器
if (this.handler !== null && !this.handler.isDestroyed()) {
this.handler.destroy();
}
// 移除编辑点，清空编辑点数组
for (let id of this.pointsId) {
viewer.entities.removeById(id);
}
this.pointsId = [];
# 地球二三维切换
// 切换为三维
viewer.scene.morphTo3D({
duration: Number // 切换花费的时间
});
// 切换为二维
viewer.scene.morphTo2D({
duration: Number // 切换花费的时间
});
# 测量工具
测距测高在Cesium中有相关的接口用来计算，但是测面没有计算方法，这里是通过turf.js来计算，所以计算的是平面面积
# 测量距离
//距离测量类
export default class MeasureDistance {
constructor(viewer) {
this.viewer = viewer;
this.initEvents();
this.positions = [];
this.tempPositions = [];
this.vertexEntities = [];
this.labelEntity = undefined;
this.measureDistance = 0; //测量结果
}
//初始化事件
initEvents() {
this.handler = new Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.MeasureStartEvent = new Cesium.Event(); //开始事件
this.MeasureEndEvent = new Cesium.Event(); //结束事件
}
//激活
activate() {
this.deactivate();
this.registerEvents(); //注册鼠标事件
//设置鼠标状态
this.viewer.enableCursorStyle = false;
this.viewer._element.style.cursor = 'default';
this.isMeasure = true;
this.measureDistance = 0;
}
//禁用
deactivate() {
if (!this.isMeasure) return;
this.unRegisterEvents();
this.viewer._element.style.cursor = 'pointer';
this.viewer.enableCursorStyle = true;
this.isMeasure = false;
this.tempPositions = [];
this.positions = [];
}
//清空绘制
clear() {
//清除线对象
this.viewer.entities.remove(this.lineEntity);
this.lineEntity = undefined;
//清除节点
this.vertexEntities.forEach(item => {
this.viewer.entities.remove(item);
});
this.vertexEntities = [];
}
//创建线对象
createLineEntity() {
this.lineEntity = this.viewer.entities.add({
polyline: {
positions: new Cesium.CallbackProperty(e => {
return this.tempPositions;
}, false),
width: 2,
material: Cesium.Color.YELLOW,
depthFailMaterial: Cesium.Color.YELLOW
}
})
}
//创建线节点
createVertex() {
let vertexEntity = this.viewer.entities.add({
position: this.positions[this.positions.length - 1],
id: "MeasureDistanceVertex" + this.positions[this.positions.length - 1],
type: "MeasureDistanceVertex",
label: {
text: spaceDistance(this.positions) + "米",
scale: 0.5,
font: 'normal 24px MicroSoft YaHei',
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 5000),
scaleByDistance: new Cesium.NearFarScalar(1000, 1, 3000, 0.4),
verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
style: Cesium.LabelStyle.FILL_AND_OUTLINE,
pixelOffset: new Cesium.Cartesian2(0, -30),
outlineWidth: 9,
outlineColor: Cesium.Color.WHITE
},
point: {
color: Cesium.Color.FUCHSIA,
pixelSize: 8,
disableDepthTestDistance: 500,
},
});
this.vertexEntities.push(vertexEntity);
}
//创建起点
createStartEntity() {
let vertexEntity = this.viewer.entities.add({
position: this.positions[0],
type: "MeasureDistanceVertex",
billboard: {
image: "../../static/images/start.png",
scaleByDistance: new Cesium.NearFarScalar(300, 1, 1200, 0.4), //设置随图缩放距离和比例
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 10000), //设置可见距离 10000米可见
verticalOrigin: Cesium.VerticalOrigin.BOTTOM
},
point: {
color: Cesium.Color.FUCHSIA,
pixelSize: 6,
},
});
this.vertexEntities.push(vertexEntity);
}
//创建终点节点
createEndEntity() {
//结束时删除最后一个节点的距离标识
let lastLabel = this.viewer.entities.getById("MeasureDistanceVertex" + this.positions[this.positions.length - 1]);
this.viewer.entities.remove(lastLabel);
this.viewer.entities.remove(this.moveVertexEntity);
let vertexEntity = this.viewer.entities.add({
position: this.positions[this.positions.length - 1],
type: "MeasureDistanceVertex",
label: {
text: "总距离：" + spaceDistance(this.positions) + "米",
scale: 0.5,
font: 'normal 26px MicroSoft YaHei',
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 5000),
scaleByDistance: new Cesium.NearFarScalar(1000, 1, 3000, 0.4),
verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
style: Cesium.LabelStyle.FILL_AND_OUTLINE,
pixelOffset: new Cesium.Cartesian2(0, -50),
outlineWidth: 9,
outlineColor: Cesium.Color.WHITE,
eyeOffset: new Cesium.Cartesian3(0, 0, -10)
},
billboard: {
image: "../../static/images/end.png",
scaleByDistance: new Cesium.NearFarScalar(300, 1, 1200, 0.4), //设置随图缩放距离和比例
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 10000), //设置可见距离 10000米可见
verticalOrigin: Cesium.VerticalOrigin.BOTTOM
},
point: {
color: Cesium.Color.FUCHSIA,
pixelSize: 6,
},
});
this.vertexEntities.push(vertexEntity);
}
//注册鼠标事件
registerEvents() {
this.leftClickEvent();
this.rightClickEvent();
this.mouseMoveEvent();
}
//左键点击事件
leftClickEvent() {
//单击鼠标左键画点点击事件
this.handler.setInputAction(e => {
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.position);
if (!position) {
const ellipsoid = this.viewer.scene.globe.ellipsoid;
position = this.viewer.scene.camera.pickEllipsoid(e.position, ellipsoid);
}
if (!position) return;
this.positions.push(position);
if (this.positions.length == 1) { //首次点击
this.createLineEntity();
this.createStartEntity();
return;
}
this.createVertex();
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
}
//鼠标移动事件
mouseMoveEvent() {
this.handler.setInputAction(e => {
if (!this.isMeasure) return;
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.endPosition);
if (!position) {
position = this.viewer.scene.camera.pickEllipsoid(e.startPosition, this.viewer.scene.globe.ellipsoid);
}
if (!position) return;
this.handleMoveEvent(position);
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
//处理鼠标移动
handleMoveEvent(position) {
if (this.positions.length < 1) return;
this.tempPositions = this.positions.concat(position);
}
//右键事件
rightClickEvent() {
this.handler.setInputAction(e => {
if (!this.isMeasure || this.positions.length < 1) {
this.deactivate();
this.clear();
} else {
this.createEndEntity();
this.lineEntity.polyline = {
positions: this.positions,
width: 2,
material: Cesium.Color.YELLOW,
depthFailMaterial: Cesium.Color.YELLOW
};
this.measureEnd();
}
}, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//测量结束
measureEnd() {
this.deactivate();
this.MeasureEndEvent.raiseEvent(this.measureDistance); //触发结束事件 传入结果
}
//解除鼠标事件
unRegisterEvents() {
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.RIGHT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
}
# 测量高度
//高度测量类
export default class MeasureHeight {
constructor(viewer) {
this.viewer = viewer;
this.initEvents();
this.positions = [];
this.vertexEntities = [];
this.labelEntity = undefined;
this.measureHeight = 0; //测量结果
}
//初始化事件
initEvents() {
this.handler = new Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.MeasureStartEvent = new Cesium.Event(); //开始事件
this.MeasureEndEvent = new Cesium.Event(); //结束事件
}
//激活
activate() {
this.deactivate();
this.registerEvents(); //注册鼠标事件
//设置鼠标状态
this.viewer.enableCursorStyle = false;
this.viewer._element.style.cursor = 'default';
this.isMeasure = true;
this.circleRadius = 0.1;
this.measureHeight = 0;
this.positions = [];
}
//禁用
deactivate() {
if (!this.isMeasure) return;
this.unRegisterEvents();
this.viewer._element.style.cursor = 'pointer';
this.viewer.enableCursorStyle = true;
this.isMeasure = false;
}
//清空绘制
clear() {
//清除线对象
this.viewer.entities.remove(this.lineEntity);
this.lineEntity = undefined;
//清除文本
this.viewer.entities.remove(this.labelEntity);
this.labelEntity = undefined;
//移除圆
this.removeCircleEntity();
//清除节点
this.vertexEntities.forEach(item => {
this.viewer.entities.remove(item);
});
this.vertexEntities = [];
}
//创建线对象
createLineEntity() {
this.lineEntity = this.viewer.entities.add({
polyline: {
positions: new Cesium.CallbackProperty(e => {
return this.positions;
}, false),
width: 2,
material: Cesium.Color.YELLOW,
depthFailMaterial: new Cesium.PolylineDashMaterialProperty({
color: Cesium.Color.RED,
}),
}
})
}
//创建结果文本标签
createLabel() {
this.labelEntity = this.viewer.entities.add({
position: new Cesium.CallbackProperty(e => {
return this.positions[this.positions.length - 1]; //返回最后一个点
}, false),
label: {
text: "",
scale: 0.5,
font: 'normal 40px MicroSoft YaHei',
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 5000),
scaleByDistance: new Cesium.NearFarScalar(500, 1, 1500, 0.4),
verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
style: Cesium.LabelStyle.FILL_AND_OUTLINE,
pixelOffset: new Cesium.Cartesian2(0, -30),
outlineWidth: 9,
outlineColor: Cesium.Color.WHITE
}
})
}
//创建线节点
createVertex(index) {
let vertexEntity = this.viewer.entities.add({
position: new Cesium.CallbackProperty(e => {
return this.positions[index];
}, false),
type: "MeasureHeightVertex",
point: {
color: Cesium.Color.FUCHSIA,
pixelSize: 6,
// disableDepthTestDistance: 2000,
},
});
this.vertexEntities.push(vertexEntity);
}
//创建圆 这样方便看出水平面的高低
createCircleEntitiy() {
this.circleEntity = this.viewer.entities.add({
position: new Cesium.CallbackProperty(e => {
return this.positions[this.positions.length - 1]; //返回最后一个点
}, false),
ellipse: {
height: new Cesium.CallbackProperty(e => {
return positionHeight(this.positions[this.positions.length - 1]);
}, false),
semiMinorAxis: new Cesium.CallbackProperty(e => {
return this.circleRadius;
}, false),
semiMajorAxis: new Cesium.CallbackProperty(e => {
return this.circleRadius;
}, false),
material: Cesium.Color.YELLOW.withAlpha(0.5),
},
});
}
//删除圆
removeCircleEntity() {
this.viewer.entities.remove(this.circleEntity);
this.circleEntity = undefined;
}
//注册鼠标事件
registerEvents() {
this.leftClickEvent();
this.rightClickEvent();
this.mouseMoveEvent();
}
//左键点击事件
leftClickEvent() {
//单击鼠标左键画点点击事件
this.handler.setInputAction(e => {
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.position);
if (!position) {
const ellipsoid = this.viewer.scene.globe.ellipsoid;
position = this.viewer.scene.camera.pickEllipsoid(e.position, ellipsoid);
}
if (!position) return;
if (this.positions.length == 0) { //首次点击
this.positions.push(position);
this.createVertex(0);
this.createLineEntity();
this.createCircleEntitiy();
this.createLabel();
} else { //第二次点击结束测量
this.measureEnd();
}
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
}
//鼠标移动事件
mouseMoveEvent() {
this.handler.setInputAction(e => {
if (!this.isMeasure) return;
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.endPosition);
if (!position) {
position = this.viewer.scene.camera.pickEllipsoid(e.startPosition, this.viewer.scene.globe.ellipsoid);
}
if (!position) return;
this.handleMoveEvent(position);
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
//处理鼠标移动
handleMoveEvent(position) {
if (this.positions.length < 1) return;
let firstPoint = cartesian3Point3(this.positions[0]); //第一个点
let movePoint = cartesian3Point3(position); //鼠标移动点
const h = movePoint[2] - firstPoint[2];
firstPoint[2] = movePoint[2];
const twoPosition = Cesium.Cartesian3.fromDegrees(firstPoint[0], firstPoint[1], movePoint[2]);
if (this.positions.length < 2) {
this.positions.push(twoPosition);
this.createVertex(1);
} else {
this.positions[1] = twoPosition;
this.measureHeight = h.toFixed(3);
this.labelEntity.label.text = "高度：" + this.measureHeight + " 米"
}
//计算圆的半径
this.circleRadius = getDistanceH(this.positions[0], position);
}
//右键事件
rightClickEvent() {
this.handler.setInputAction(e => {
if (this.isMeasure) {
this.deactivate();
this.clear();
}
}, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//测量结束
measureEnd() {
this.deactivate();
this.MeasureEndEvent.raiseEvent(this.measureHeight); //触发结束事件 传入结果
}
//解除鼠标事件
unRegisterEvents() {
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.RIGHT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
}
# 测量面积
//面积测量类
export default class MeasureDistance {
constructor(viewer) {
this.viewer = viewer;
this.initEvents();
this.positions = [];
this.tempPositions = [];
this.vertexEntities = [];
this.labelEntity = undefined;
this.measureArea = 0; //测量结果
}
//初始化事件
initEvents() {
this.handler = new Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.MeasureStartEvent = new Cesium.Event(); //开始事件
this.MeasureEndEvent = new Cesium.Event(); //结束事件
}
//激活
activate() {
this.deactivate();
this.registerEvents(); //注册鼠标事件
//设置鼠标状态
this.viewer.enableCursorStyle = false;
this.viewer._element.style.cursor = 'default';
this.isMeasure = true;
this.measureArea = 0;
}
//禁用
deactivate() {
if (!this.isMeasure) return;
this.unRegisterEvents();
this.viewer._element.style.cursor = 'pointer';
this.viewer.enableCursorStyle = true;
this.isMeasure = false;
this.tempPositions = [];
this.positions = [];
this.height = undefined;
}
//清空绘制
clear() {
//清除线面对象
this.viewer.entities.remove(this.polygonEntity);
this.polygonEntity = undefined;
//清除节点
this.vertexEntities.forEach(item => {
this.viewer.entities.remove(item);
});
this.vertexEntities = [];
this.viewer.entities.remove(this.mesureResultEntity);
this.mesureResultEntity = undefined;
this.height = undefined;
}
//创建面对象
createPolygonEntity() {
this.polygonEntity = this.viewer.entities.add({
polygon: {
hierarchy: new Cesium.CallbackProperty(e => {
return new Cesium.PolygonHierarchy(this.tempPositions);
//使用最新1.72的时候 必须返回PolygonHierarchy类型 Cannot read property 'length' of undefined
//低版本好像都可以
}, false),
material: Cesium.Color.RED.withAlpha(0.4),
perPositionHeight: true, //
},
polyline: {
positions: new Cesium.CallbackProperty(e => {
return this.tempPositions.concat(this.tempPositions[0]);
}, false),
width: 1,
material: new Cesium.PolylineDashMaterialProperty({
color: Cesium.Color.YELLOW,
}),
depthFailMaterial: new Cesium.PolylineDashMaterialProperty({
color: Cesium.Color.YELLOW,
}),
}
})
}
//创建节点
createVertex() {
let vertexEntity = this.viewer.entities.add({
position: this.positions[this.positions.length - 1],
type: "MeasureAreaVertex",
point: {
color: Cesium.Color.FUCHSIA,
pixelSize: 8,
disableDepthTestDistance: 500,
},
});
this.vertexEntities.push(vertexEntity);
}
//测量结果标签
createResultLabel() {
this.mesureResultEntity = this.viewer.entities.add({
position: new Cesium.CallbackProperty(e => {
return this.getCenterPosition()
}, false),
type: "MeasureAreaResult",
label: {
text: new Cesium.CallbackProperty(e => {
return "面积" + computeArea(this.tempPositions) + "平方米";
}, false),
scale: 0.5,
font: 'normal 28px MicroSoft YaHei',
distanceDisplayCondition: new Cesium.DistanceDisplayCondition(0, 5000),
scaleByDistance: new Cesium.NearFarScalar(1000, 1, 3000, 0.4),
verticalOrigin: Cesium.VerticalOrigin.BOTTOM,
style: Cesium.LabelStyle.FILL_AND_OUTLINE,
pixelOffset: new Cesium.Cartesian2(0, -30),
outlineWidth: 9,
outlineColor: Cesium.Color.YELLOW
},
});
}
//获取节点的中心点
getCenterPosition() {
let points = [];
if (this.tempPositions.length < 3) return this.tempPositions[0];
this.tempPositions.forEach(position => {
const point3d = this.cartesian3ToPoint3D(position);
points.push([point3d.x, point3d.y]);
})
//构建turf.js lineString
let geo = turf.lineString(points);
let bbox = turf.bbox(geo);
let bboxPolygon = turf.bboxPolygon(bbox);
let pointOnFeature = turf.center(bboxPolygon);
let lonLat = pointOnFeature.geometry.coordinates;
return Cesium.Cartesian3.fromDegrees(lonLat[0], lonLat[1], this.height + 0.3);
}
//注册鼠标事件
registerEvents() {
this.leftClickEvent();
this.rightClickEvent();
this.mouseMoveEvent();
}
//左键点击事件
leftClickEvent() {
//单击鼠标左键画点点击事件
this.handler.setInputAction(e => {
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.position);
if (!position) {
const ellipsoid = this.viewer.scene.globe.ellipsoid;
position = this.viewer.scene.camera.pickEllipsoid(e.position, ellipsoid);
}
if (!position) return;
this.positions.push(position);
this.height = this.unifiedHeight(this.positions, this.height);
if (this.positions.length == 1) { //首次点击
this.createPolygonEntity();
}
this.createVertex();
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
}
//鼠标移动事件
mouseMoveEvent() {
this.handler.setInputAction(e => {
if (!this.isMeasure) return;
this.viewer._element.style.cursor = 'default';
let position = this.viewer.scene.pickPosition(e.endPosition);
if (!position) {
position = this.viewer.scene.camera.pickEllipsoid(e.startPosition, this.viewer.scene.globe.ellipsoid);
}
if (!position) return;
this.handleMoveEvent(position);
}, Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
//处理鼠标移动
handleMoveEvent(position) {
if (this.positions.length < 1) return;
this.height = this.unifiedHeight(this.positions, this.height);
this.tempPositions = this.positions.concat(position);
if (this.tempPositions.length >= 3 && !this.mesureResultEntity) {
this.createResultLabel();
}
}
//统一节点的高度
unifiedHeight(positions, height) {
if (!height) height = this.getPositionHeight(positions[0]); //如果没有指定高度 就用第一个的高度
let point3d;
for (let i = 0; i < positions.length; i++) {
const element = positions[i];
point3d = this.cartesian3ToPoint3D(element);
positions[i] = Cesium.Cartesian3.fromDegrees(point3d.x, point3d.y, height)
}
return height;
}
//获取某个点的高度
getPositionHeight(position) {
const cartographic = Cesium.Cartographic.fromCartesian(position);
return cartographic.height;
}
cartesian3ToPoint3D(position) {
const cartographic = Cesium.Cartographic.fromCartesian(position);
const lon = Cesium.Math.toDegrees(cartographic.longitude);
const lat = Cesium.Math.toDegrees(cartographic.latitude);
return { x: lon, y: lat, z: cartographic.height };
}
//右键事件
rightClickEvent() {
this.handler.setInputAction(e => {
if (!this.isMeasure || this.positions.length < 3) {
this.deactivate();
this.clear();
} else {
this.tempPositions = [...this.positions];
this.polygonEntity.polyline = {
positions: this.positions.concat(this.positions[0]),
width: 2,
material: Cesium.Color.YELLOW,
depthFailMaterial: new Cesium.PolylineDashMaterialProperty({
color: Cesium.Color.YELLOW,
}),
};
this.polygonEntity.polygon.hierarchy = new Cesium.PolygonHierarchy(this.tempPositions);
this.mesureResultEntity.position = this.getCenterPosition();
this.mesureResultEntity.label.text = "总面积" + computeArea(this.positions) + "平方米"
this.measureEnd();
}
}, Cesium.ScreenSpaceEventType.RIGHT_CLICK);
}
//测量结束
measureEnd() {
this.deactivate();
this.MeasureEndEvent.raiseEvent(this.measureArea); //触发结束事件 传入结果
}
//解除鼠标事件
unRegisterEvents() {
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.RIGHT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
this.handler.removeInputAction(Cesium.ScreenSpaceEventType.MOUSE_MOVE);
}
}
# 两种添加 model 方法的区别
Cesium 中包含两种添加 model 的方法，分别为：
- 通过 viewer.entities.add() 函数添加
- 通过 viewer.scene.primitives.add() 函数添加，更底层一些
两种方法本质上是相通的，方法 1对方法 2在某种程度上进行了封装。
# 两种方法的区别
- 方法 1通过指定 model 的 position 和 orientation 来控制模型的位置，对模型进行精确变换难度较大
方法 2通过 modelMatrix 控制模型的位置和方向，可进行较为精确的模型变换 - 对相机操作时
方法1提供了较为方便的 viewer.trackedEntity 函数
方法 2追踪 model 较为复杂，需要手动操作相机变换 - 对模型进行缩放、变换等操作
方法 1 需要修改 object.id(Entity 类型) 中 model(ModelGraphics 类型) 的 scale 和 nodeTransformations
方法 2 可以直接修改 object.primitive(model 类型) 中的 scale 和 modelMatrix - Entity没有加载完成事件，而Primitive有加载完成事件
- Entity只能加载一个对象，而Primitive可以一次加载多个对象
- Entity类封装了很多个几何对象，非常方便的绘制出几何对象来，而如果使用Primitive的话你需要懂的知识不少，比如几何对象的构造
# 两种方法的相同
- 构建的对象中还包含 ModelMesh 和 ModeNode，ModelMesh 中包含了模型的网格和材质，ModeNode 中包含了一个 transform，可以在运行时对模型进行动态变换，以实现自定义模型动画。
- 分别使用方法 1和方法 2建立两个模型，然后对其进行点击操作，查看点击得到的物体。
两种方法返回同样的对象：{id: object,mesh: ModelMesh,node: ModeNode,primitive: Model} - 从 Entity 获得 Model 的方法：
function getModelForEntity(entity) {
var primitives = viewer.scene.primitives;
for (var i = 0; i < primitives.length; i++) {
var primitive = primitives.get(i);
if (primitive instanceof Cesium.Model && primitive.id === entity) {
return primitive;
}
}
};
# 示例代码
function createModel(url, height) {
viewer.entities.removeAll();
var position = Cesium.Cartesian3.fromDegrees(-123.0744619, 44.0503706, height);
var heading = Cesium.Math.toRadians(135);
var pitch = 0;
var roll = 0;
var hpr = new Cesium.HeadingPitchRoll(heading, pitch, roll);
var orientation = Cesium.Transforms.headingPitchRollQuaternion(position, hpr);
var entity = viewer.entities.add({
name : url,
position : position,
orientation : orientation,
model : {
uri : url,
minimumPixelSize : 128,
maximumScale : 20000
}
});
viewer.trackedEntity = entity;
}
function createModel(url, height, heading, pitch, roll) {
height = Cesium.defaultValue(height, 0.0);
heading = Cesium.defaultValue(heading, 0.0);
pitch = Cesium.defaultValue(pitch, 0.0);
roll = Cesium.defaultValue(roll, 0.0);
var hpr = new Cesium.HeadingPitchRoll(heading, pitch, roll);
var origin = Cesium.Cartesian3.fromDegrees(-123.0744619, 44.0503706, height);
var modelMatrix = Cesium.Transforms.headingPitchRollToFixedFrame(origin, hpr);
scene.primitives.removeAll(); // Remove previous model
model = scene.primitives.add(Cesium.Model.fromGltf({
url : url,
modelMatrix : modelMatrix,
minimumPixelSize : 128
}));
model.readyPromise.then(function(model) {
model.color = Cesium.Color.fromAlpha(getColor(viewModel.color),
Number(viewModel.alpha));
model.colorBlendMode = getColorBlendMode(viewModel.colorBlendMode);
model.colorBlendAmount = viewModel.colorBlendAmount;
// Play and loop all animations at half-speed
model.activeAnimations.addAll({
speedup : 0.5,
loop : Cesium.ModelAnimationLoop.REPEAT
});
var camera = viewer.camera;
// Zoom to model
var controller = scene.screenSpaceCameraController;
var r = 2.0 * Math.max(model.boundingSphere.radius, camera.frustum.near);
controller.minimumZoomDistance = r * 0.5;
var center = Cesium.Matrix4.multiplyByPoint(model.modelMatrix,
model.boundingSphere.center,
new Cesium.Cartesian3());
var heading = Cesium.Math.toRadians(230.0);
var pitch = Cesium.Math.toRadians(-20.0);
camera.lookAt(center, new Cesium.HeadingPitchRange(heading, pitch, r * 2.0));
}).otherwise(function(error){
window.alert(error);
});
}
# 清除实体和图形的方式
根据ID获取实体并清除
//id为添加实体时的id名称
let entID = viewer.entities.getById('id')
viewer.entities.remove(entID);
根据变量获取实体并清除
let box = viewer.entities.add({
id:'box',
position:Cesium.Cartesian3.fromDegrees(108, 34,0)
}）
view.entities.remove(box)
删除所有实体
viewer.entities.removeAll()
创建primitive对象并销毁
let react = scene.primitives.add(new Cesium.RectanglePrimitive({
//绘制矩形
rectangle : Cesium.Rectangle.fromDegrees(-100.0, 20.0, -90.0, 30.0),
material : Cesium.Material.fromType('Dot') //设置材质
}));
//根据变量销毁
react.destroy()
//销毁所有
scene.primitives.removeall(),//谨慎使用，可能删除不必要的primitive
# 获取地形的高度
# 区域地形的最低点和最高点
Cesium.ApproximateTerrainHeights.initialize()
Cesium.ApproximateTerrainHeights.getMinimumMaximumHeights(
Cesium.Rectangle.fromDegrees(110,30,110.5,30.04)
)
# 获取地形的高度
不要再使用网上的globe的方法了，现在Cesium已经有两种方法可以获取到地形的高度了，分别为：
- sampleTerrain：获取非精确的地形的高度
var terrainProvider = Cesium.createWorldTerrain();
var positions = [
Cesium.Cartographic.fromDegrees(86.925145, 27.988257),
Cesium.Cartographic.fromDegrees(87.0, 28.0)
];
var promise = Cesium.sampleTerrain(terrainProvider, 11, positions);
Cesium.when(promise, function(updatedPositions) {
// positions[0].height and positions[1].height have been updated.
// updatedPositions is just a reference to positions.
});
- sampleTerrainMostDetailed：获取尽量精确的地形的高度
// Query the terrain height of two Cartographic positions
var terrainProvider = Cesium.createWorldTerrain();
var positions = [
Cesium.Cartographic.fromDegrees(86.925145, 27.988257),
Cesium.Cartographic.fromDegrees(87.0, 28.0)
];
var promise = Cesium.sampleTerrainMostDetailed(terrainProvider, positions);
Cesium.when(promise, function(updatedPositions) {
// positions[0].height and positions[1].height have been updated.
// updatedPositions is just a reference to positions.
});
# 获取当前视图范围
getPickRay这个方法能够通过屏幕坐标转换成经纬度坐标。屏幕坐标的话，我们可以通过div位置来获取，这样屏幕的左上角坐标和右下角坐标是可以很容易获取到的。
var pt1 = new Cesium.Cartesian2(0,0);
var pt2= new Cesium.Cartesian2(500,500);
var pick1= viewer.scene.globe.pick(viewer.camera.getPickRay(pt1), viewer.scene);
var pick2= viewer.scene.globe.pick(viewer.camera.getPickRay(pt2), viewer.scene);
//将三维坐标转成地理坐标
var geoPt1= viewer.scene.globe.ellipsoid.cartesianToCartographic(pick1);
var geoPt2= viewer.scene.globe.ellipsoid.cartesianToCartographic(pick2);
//地理坐标转换为经纬度坐标
var point1=[geoPt1.longitude / Math.PI * 180,geoPt1.latitude / Math.PI * 180];
var point2=[geoPt2.longitude / Math.PI * 180,geoPt2.latitude / Math.PI * 180];
# 贴地处理
# 实体的贴地处理
实体类型的贴地处理，是设置heightReference属性为CLAMP_TO_GROUND值
let entity = new Cesium.Entity({
name: '点',
show: true,
position: Cesium.Cartesian3.fromDegrees(positions[0], positions[1], positions[2]),
point: new Cesium.PointGraphics ( {
show : true,
pixelSize : 10,
//设置HeightReference高度参考类型为CLAMP_TO_GROUND贴地类型
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
color : new Cesium.Color ( 255 , 255 , 0 , 1 ),
} )
});
对于面图层，不设置面的height:0属性，面状数据设置贴地后，边线的数据就不能显示了，需要单独添加边线数据
var geojson = {
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"properties": {},
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
93.6474609375,
37.10776507118514
],
[
93.01025390625,
35.17380831799959
],
[
95.11962890625,
33.54139466898275
],
[
97.53662109375,
33.54139466898275
],
[
99.25048828124999,
33.96158628979907
],
[
99.97558593749999,
35.191766965947394
],
[
99.84374999999999,
36.38591277287651
],
[
98.85498046875,
37.45741810262938
],
[
97.18505859374999,
37.90953361677018
],
[
95.16357421875,
37.82280243352756
],
[
93.6474609375,
37.10776507118514
]
]
]
}
}
]
}
var promise = Cesium.GeoJsonDataSource.load(geojson,
{
camera : viewer.scene.camera,
canvas : viewer.scene.canvas,
clampToGround: true//开启贴地
}
);
promise.then(function (dataSource) {
//Get the array of entities
var entities = dataSource.entities.values;
entities.forEach((entitie) => {
//必须要设置高度边线才有用，可是设置了高度之后贴地就没了
//entitie.polygon.height = 50;
entitie.polygon.outline = true;
entitie.polygon.outlineColor = Cesium.Color.AQUA;
entitie.polygon.outlineWidth = 50;
entitie.polygon.closeTop = false;
//单独设置线条样式
var positions = entitie.polygon.hierarchy._value.positions;
entitie.polyline = {
positions: positions,
width: 10,
material: Cesium.Color.BLACK.withAlpha(1),
clampToGround: true
}
viewer.entities.add(entitie);
})
})
# geojson数据
在加载的时候设置clampToGround属性为true
const res = Cesium.GeoJsonDataSource.load("./china.geojson",{
clampToGround: true,
})
# polyline
设置clampToGround属性为true
const point = viewer.entities.add({
name: "polyline",
polyline: {
positions: Cesium.Cartesian3.fromDegreesArray(arr),
width: 1,
material: new Cesium.Color(222/255, 216/255, 192/255, 1),
clampToGround: true,
},
});
# kml数据

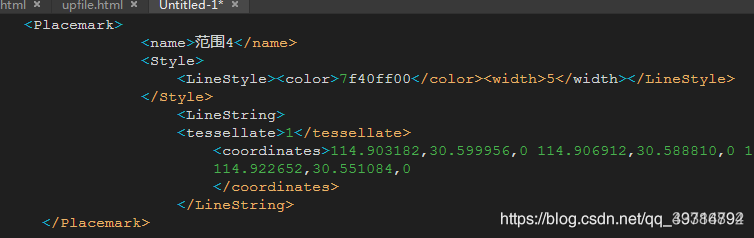

在加载kml文件时，有的文件，线可以贴地，有的不能贴地，后来通过分析，主要原因是原始的kml文件中设置了贴地，在cesium中才贴地，否则在cesium中设置clampToGround: true也无法实现贴地
- kml中原始贴地格式如下：tessellate 标签为1时贴地，没有设置贴地一般就没有tessellate这个标签
- cesium中加载kml(主要包含为线和点)
var options = {
camera: viewer.scene.camera,
canvas: viewer.scene.canvas,`在这里插入代码片`
clampToGround: true, //开启贴地
};
var kmlx=viewer.dataSources.add(Cesium.KmlDataSource.load(url, options));
kmlx.then(function (dataSource) {
viewer.flyTo(kmlx);
var entities = dataSource.entities.values;
for (var i = 0; i < entities.length; i++) {
var entity = entities[i];
//只对_billboard进行设置。
if (entity._billboard) {
//去掉地形遮挡
entity._billboard.disableDepthTestDistance = Number.POSITIVE_INFINITY;
//设置贴地
entity.billboard.heightReference=Cesium.HeightReference.CLAMP_TO_GROUND;
//设置文字标签，没有颜色(白色在cesium中非常不好看)替换成红色
entity._label.pixelOffset = new Cesium.Cartesian2(10, -20);
if ("undefined" === typeof (entity._label.fillColor)) {
entity._label.fillColor = Cesium.Color.RED;
}//if
}//if
}
});
以上//只对_billboard进行设置。当为线时，设置entity.polyline.clampToGround=true可能出现错误，经过测试当发现当kml文件有标签时，是能这样设置贴地；当不存在，线就没这个属性，不能设置，就会导致出错。
- 解决办法
- 第一种解决办法是：修改kml文件，在线的标签后添加1
- 第二种解决办法是修改cesium.js,就是kml加载时，不管kml中有没有标签都设置成贴地；具体如下：
- 打开cesium.js查找 tessellate字符串
- 在该字符串后面找到如下代码：else if(t._clampToGround&&!f&&p) 去掉后面的 &&p 保存
- 就是当cesium中设置了clampToGround，kml无论是否设置了贴地，在加载时都实现贴地
- 字符P是不同的
# 鼠标事件监听
在Cesium里面，我们可以通过Cesium.ScreenSpaceEventHandler的实例化对象的setInputAction方法绑定鼠标事件：
//添加鼠标点击事件
var handler = new Cesium.ScreenSpaceEventHandler(viewer.canvas);
//监听触发的事件
handler.setInputAction(function(event) {
var feature = viewer.scene.pick(event.position);
//选中某模型
if (feature && feature instanceof Cesium.Cesium3DTileFeature) {
console.log(feature);
}
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
// 移除事件
viewer.screenSpaceEventHandler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
setInputAction的第一个参数是当事件触发时的回调，第二个参数是绑定的事件类型，，event中的位置格式是平面坐标
- 鼠标左键双击事件：Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK
- 鼠标左键按下事件：Cesium.ScreenSpaceEventType.LEFT_DOWN
- 鼠标左键抬起事件：Cesium.ScreenSpaceEventType.LEFT_UP
- 鼠标中键单击事件：Cesium.ScreenSpaceEventType.MIDDLE_CLICK
- 鼠标中键按下事件：Cesium.ScreenSpaceEventType.MIDDLE_DOWN
- 鼠标中键抬起事件：Cesium.ScreenSpaceEventType.MIDDLE_UP
- 鼠标移动事件：Cesium.ScreenSpaceEventType.MOUSE_MOVE
- 触摸表面上的双指事件的结束：Cesium.ScreenSpaceEventType.PINCH_END
- 触摸表面上双指移动事件：Cesium.ScreenSpaceEventType.PINCH_MOVE
- 触摸表面上双指事件的开始：Cesium.ScreenSpaceEventType.PINCH_START
- 鼠标右键单击事件：Cesium.ScreenSpaceEventType.RIGHT_CLICK
- 鼠标右键按下事件：Cesium.ScreenSpaceEventType.RIGHT_DOWN
- 鼠标滚轮事件：Cesium.ScreenSpaceEventType.WHEEL
viewer.selectedEntityChanged.addEventListener
// 点击左键时，若点击的实体产生变化才会调用
viewer.selectedEntityChanged.addEventListener(entity => {
console.log(entity);
})
// 开启抗锯齿
viewer.scene.postProcessStages.fxaa.enabled = true;
// 取消默认的左键双击事件
viewer.cesiumWidget.screenSpaceEventHandler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);
# 去掉entity的点击事件
//双击
viewer.cesiumWidget.screenSpaceEventHandler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_DOUBLE_CLICK);
//单击
viewer.cesiumWidget.screenSpaceEventHandler.removeInputAction(Cesium.ScreenSpaceEventType.LEFT_CLICK);
# 四种点击拾取方法
# viewer.scene.pick()
通过坐标位置拾取实体(Entity)、图元(Primitive)、3DTiles对象，返回scene中指定位置最上层的对象。例如点击获取Entity对象，通过pick.id可以拾取当前的entity对象。拾取后可以用于改变对象的属性参数。
//处理用户输入事件
let handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
// 设置左键点击事件
handler.setInputAction(function (event) {
// 获取 pick 拾取对象
let pick = viewer.scene.pick(event.position);
// 判断是否获取到了对象
if (Cesium.defined(pick)) {
// 修改拾取到的entity的样式
pick.id.billboard.image = "......"
}
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
//drillPick 返回拾取到的图元对象集合，图元列表按其在场景中的视觉顺序（从前到后）排序
var pickedObjects = scene.drillPick(new Cesium.Cartesian2(100.0, 200.0));
注意
- 只能获取一个对象，并且是最顶部的对象。如果拾取点没有对象，则会返回undefined
- 拾取半透明图元的位置时需要开启：viewer.scene.pickTranslucentDepth = true
# viewer.scene.globe.pick()
返回一个射线(ray)和地球表面的一个交点的Cartesian3坐标。此方法一般用于获取加载地形后的经纬度和高程，不包括模型、倾斜摄影等表面高度。
let handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
handler.setInputAction(function (event) {
let ray = viewer.camera.getPickRay(event.position);//获取一条射线
let position = viewer.scene.globe.pick(ray, viewer.scene);
console.log("当前拾取的坐标：", position);
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
注意
最好开启深度检测：viewer.scene.globe.depthTestAgainstTerrain = true
# viewer.scene.camera.pickEllipsoid()
返回相机视角下鼠标点击的对应椭球面位置。接收屏幕坐标，返回Cartesian3坐标。适用裸球表面的选取，是基于数学模型的椭圆球体。
let handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
handler.setInputAction(function (event) {
let ellipsoid = viewer.scene.globe.ellipsoid;
let position = viewer.scene.camera.pickEllipsoid(event.position, ellipsoid);
console.log("点击拾取的坐标：", position);
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
注意
在有地形的情况下误差较大，在使用时需要关闭深度测试
# viewer.scene.pickPosition()
拾取对应位置的Cartesian3，适用于模型表面位置的选取，拾取三维物体的坐标等。
let handler = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
handler.setInputAction(function (event) {
let position = viewer.scene.pickPosition(event.position);
console.log("获取到的坐标：", positionposition);
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
TIP
一定开启深度检测：viewer.scene.globe.depthTestAgainstTerrain = true
否则在没有没有3dTile模型的情况下，会出现空间坐标不准的问题
# 倾斜模型单体化
倾斜模型分层单体化需要数据结合代码来实现，数据生产需要采集每层的面坐标串、底部高程、层高、顶部高度等信息。有了数据后在Cesium中通过ClassificationPrimitive渲染出来。
//创建拉伸的多边形对象
createExtrudedPolygon(id, polygonGeometry) {
return this.viewer.scene.primitives.add(
new Cesium.ClassificationPrimitive({
geometryInstances: new Cesium.GeometryInstance({
geometry: Cesium.PolygonGeometry.createGeometry(polygonGeometry),
attributes: {
color: Cesium.ColorGeometryInstanceAttribute.fromColor(
Cesium.Color.fromRandom({ alpha: 0.8 })
),
show: new Cesium.ShowGeometryInstanceAttribute(true),
},
id: id, //设置id有效 其他属性无效
}),
classificationType: Cesium.ClassificationType.CESIUM_3D_TILE,
})
);
},
# 加载影像
# 默认类型
imageryProvider：默认createWorldImagery()
# 其他类型
- ArcGisMapServerImageryProvider
- BingMapsImageryProvider
- OpenStreetMapImageryProvider
- TileMapServiceImageryProvider
- GoogleEarthEnterpriseImageryProvider：谷歌企业版
- GoogleEarthEnterpriseMapsProvider
- GridImageryProvider
- IonImageryProvider
- MapboxImageryProvider
- MapboxStyleImageryProvider
- SingleTileImageryProvider
- TileCoordinatesImageryProvider
- UrlTemplateImageryProvider：URL模板
- WebMapServiceImageryProvider
- WebMapTileServiceImageryProvider
# 示例代码
//加载ArcGIS卫星图
tdtLayer = new Cesium.ArcGisMapServerImageryProvider({
url: 'https://services.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer'
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//加载ArcGIS街道图
var tdtLayer = new Cesium.ArcGisMapServerImageryProvider({
url: "http://services.arcgisonline.com/ArcGIS/rest/services/World_Street_Map/MapServer"
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//加载ArcGIS蓝色图
var tdtLayer = new Cesium.UrlTemplateImageryProvider({
url: "https://map.geoq.cn/arcgis/rest/services/ChinaOnlineStreetPurplishBlue/MapServer/tile/{z}/{y}/{x}"
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//高德矢量图
let tdtLayer = new Cesium.UrlTemplateImageryProvider({
url: "http://webrd02.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=8&x={x}&y={y}&z={z}",
minimumLevel: 3,
maximumLevel: 18
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//高德影像
let tdtLayer = new Cesium.UrlTemplateImageryProvider({
url: "https://webst02.is.autonavi.com/appmaptile?style=6&x={x}&y={y}&z={z}",
minimumLevel: 3,
maximumLevel: 18
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//高德路网中文注记
let tdtLayer = new Cesium.UrlTemplateImageryProvider({
url: "http://webst02.is.autonavi.com/appmaptile?x={x}&y={y}&z={z}&lang=zh_cn&size=1&scale=1&style=8",
minimumLevel: 3,
maximumLevel: 18
})
viewer.imageryLayers.addImageryProvider(tdtLayer)
//天地图矢量地图
this.viewer.imageryLayers.addImageryProvider(
new Cesium.WebMapTileServiceImageryProvider({
url: "http://{s}.tianditu.gov.cn/vec_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=vec&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=天地图的TOKEN",
layer: "tdtCva",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 18
})
)
//天地图影像地图
this.viewer.imageryLayers.addImageryProvider(
new Cesium.WebMapTileServiceImageryProvider({
url: "http://{s}.tianditu.gov.cn/img_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=img&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=天地图的TOKEN",
layer: "tdtCva",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 18
})
)
//天地图栅格地图
this.viewer.imageryLayers.addImageryProvider(
new Cesium.WebMapTileServiceImageryProvider({
url: "http://{s}.tianditu.gov.cn/ter_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=ter&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=天地图的TOKEN",
layer: "tdtCva",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 18
})
)
//天地图标记地图
this.viewer.imageryLayers.addImageryProvider(
new Cesium.WebMapTileServiceImageryProvider({
url: "http://{s}.tianditu.gov.cn/cia_c/wmts?service=wmts&request=GetTile&version=1.0.0" +
"&LAYER=cia&tileMatrixSet=c&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}" +
"&style=default&format=tiles&tk=天地图的TOKEN",
layer: "tdtCva",
style: "default",
format: "tiles",
tileMatrixSetID: "c",
subdomains: ["t0", "t1", "t2", "t3", "t4", "t5", "t6", "t7"],
tilingScheme: new Cesium.GeographicTilingScheme(),
tileMatrixLabels: ["1", "2", "3", "4", "5", "6", "7", "8", "9", "10", "11", "12", "13", "14", "15", "16", "17", "18", "19"],
maximumLevel: 18
})
)
//载Mapbox地图
loadMapboxVectorMap () {
this.vectorMap = this.viewer.imageryLayers.addImageryProvider(
new Cesium.MapboxStyleImageryProvider({
url: 'https://api.mapbox.com/styles/v1',
username: '注册的账号名称',
styleId: '自定义地图时获取的styleId',
accessToken: '自定义地图时获取的AccessToken',
scaleFactor:true
})
)
this.vectorMap.title = 'mapboxVectorMap'
this.vectorMap.show = true
}
# 加载地形
# 默认类型
terrainProvider：new EllipsoidTerrainProvider() 没有地形高程，主要是个椭球体
# 其他类型
ArcGISTiledElevationTerrainProvider
CustomHeightmapTerrainProvider
EllipsoidTerrainProvider
CesiumTerrainProvider
VRTheWorldTerrainProvider
GoogleEarthEnterpriseTerrainProvider
# 示例代码
var viewer = new Cesium.Viewer('cesiumContainer', {
terrainProvider : new Cesium.CesiumTerrainProvider({
url : Cesium.IonResource.fromAssetId(3956),
requestVertexNormals : true
})
});
//加载全球地形图
var viewer = new Cesium.Viewer('cesiumContainer', {
terrainProvider : Cesium.createWorldTerrain({
requestWaterMask : true, // 请求水波纹效果
requestVertexNormals : true // 请求照明
});
});
# 设置camera视角
# setView
//setView
view.camera.setView({
destination : Cesium.Cartesian3.fromDegrees(116.435314,39.960521, 15000.0), // 设置位置
orientation: {
heading : Cesium.Math.toRadians(20.0), // 方向
pitch : Cesium.Math.toRadians(-90.0),// 倾斜角度
roll : 0
}
});
//rectangle 方式
view.camera.setView({
destination: Cesium.Rectangle.fromDegrees(0.0, 20.0, 10.0, 30.0),
orientation: {
heading : Cesium.Math.toRadians(20.0), // 方向
pitch : Cesium.Math.toRadians(-90.0),// 倾斜角度
roll : 0
}
});
# flyto
view.camera.flyTo({
destination :Cesium.Cartesian3.fromDegrees(116.435314,39.960521, 15000.0), // 设置位置
orientation: {
heading :Cesium.Math.toRadians(20.0), // 方向
pitch :Cesium.Math.toRadians(-90.0),// 倾斜角度
roll :0
},
duration:5, // 设置飞行持续时间，默认会根据距离来计算
complete:function () {
// 到达位置后执行的回调函数
},
cancle:function () {
// 如果取消飞行则会调用此函数
},
pitchAdjustHeight:-90, // 如果摄像机飞越高于该值，则调整俯仰俯仰的俯仰角度，并将地球保持在视口中。
maximumHeight:5000, // 相机最大飞行高度
flyOverLongitude:100, // 如果到达目的地有2种方式，设置具体值后会强制选择方向飞过这个经度(这个，很好用)
});
# lookAt
var center = Cesium.Cartesian3.fromDegrees(114.44455, 22.0444);//camera视野的中心点坐标
var heading = Cesium.Math.toRadians(50.0);
var pitch = Cesium.Math.toRadians(-20.0);
var range = 5000.0;
view.camera.lookAt(center, new Cesium.HeadingPitchRange(heading, pitch, range));
# 加载3DTiles
var tileset = new Cesium.Cesium3DTileset({
url: 'Data/yudingshan/3dtiles/tileset.json',
//classificationType: Cesium.ClassificationType.CESIUM_3D_TILE,
});
// tileset.style = new Cesium.Cesium3DTileStyle({
// color: "rgba(255, 0, 0, 0.5)",
// });
tileset.readyPromise.then(function (tileset) {
viewer.scene.primitives.add(tileset);
viewer.zoomTo(tileset, new Cesium.HeadingPitchRange(45, -0.5, tileset.boundingSphere.radius * 1.0));
changeHeight(0);
}).otherwise(function (error) {
console.log(error);
});
function changeHeight(height) {
height = Number(height);
if (isNaN(height)) {
return;
}
var cartographic = Cesium.Cartographic.fromCartesian(tileset.boundingSphere.center);
var surface = Cesium.Cartesian3.fromRadians(cartographic.longitude, cartographic.latitude, cartographic.height);
var offset = Cesium.Cartesian3.fromRadians(cartographic.longitude, cartographic.latitude,height);
var translation = Cesium.Cartesian3.subtract(offset, surface, new Cesium.Cartesian3());
tileset.modelMatrix = Cesium.Matrix4.fromTranslation(translation);
}
# 加载KML
// 加载kml数据，更改description信息，多了黄色的标签里面包含的
var kmlOptions = {
camera : viewer.scene.camera,
canvas : viewer.scene.canvas,
clampToGround : true
};
// Load geocache points of interest from a KML file
// Data from : http://catalog.opendata.city/dataset/pediacities-nyc-neighborhoods/resource/91778048-3c58-449c-a3f9-365ed203e914
var geocachePromise = Cesium.KmlDataSource.load('/Assets/SampleData/sampleGeocacheLocations.kml', kmlOptions);
// Add geocache billboard entities to scene and style them
geocachePromise.then(function(dataSource) {
// Add the new data as entities to the viewer
viewer.dataSources.add(dataSource);
// Get the array of entities
var geocacheEntities = dataSource.entities.values;
for (var i = 0; i < geocacheEntities.length; i++) {
var entity = geocacheEntities[i];
if (Cesium.defined(entity.billboard)) {
// Adjust the vertical origin so pins sit on terrain
entity.billboard.verticalOrigin = Cesium.VerticalOrigin.BOTTOM;
// Disable the labels to reduce clutter
entity.label = undefined;
// Add distance display condition
entity.billboard.distanceDisplayCondition = new Cesium.DistanceDisplayCondition(10.0, 20000.0);
// Compute latitude and longitude in degrees
var cartographicPosition = Cesium.Cartographic.fromCartesian(entity.position.getValue(Cesium.JulianDate.now()));
var latitude = Cesium.Math.toDegrees(cartographicPosition.latitude);
var longitude = Cesium.Math.toDegrees(cartographicPosition.longitude);
// Modify description(将信息添加到description描述信息中，我们这里只添加经纬度)
var description = '<table class="cesium-infoBox-defaultTable cesium-infoBox-defaultTable-lighter"><tbody>' +
'<tr><th>' + "Longitude" + '</th><td>' + longitude.toFixed(5) + '</td></tr>' +
'<tr><th>' + "Latitude" + '</th><td>' + latitude.toFixed(5) + '</td></tr>' +
'</tbody></table>';
entity.description = description;
}
}
});
# 加载CZML
// path and drone
// Load a drone flight path from a CZML file
var dronePromise = Cesium.CzmlDataSource.load('./assets/SampleData/SampleFlight.czml');
// Save a new drone model entity
var drone;
dronePromise.then(function(dataSource) {
viewer.dataSources.add(dataSource);
// Get the entity using the id defined in the CZML data
drone = dataSource.entities.getById('Aircraft/Aircraft1');
// Attach a 3D model
drone.model = {
uri : './assets/SampleData/Models/CesiumDrone.gltf',
minimumPixelSize : 128,
maximumScale : 1000,
silhouetteColor : Cesium.Color.WHITE,
silhouetteSize : 2
};
// Add computed orientation based on sampled positions
drone.orientation = new Cesium.VelocityOrientationProperty(drone.position);
// Smooth path interpolation
drone.position.setInterpolationOptions({
interpolationAlgorithm : Cesium.HermitePolynomialApproximation,
interpolationDegree : 2
});
drone.viewFrom = new Cesium.Cartesian3(0, -30, 30);
viewer.trackedEntity = drone;/镜头跟随
});
# 加载服务
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Use correct character set. -->
<meta charset="utf-8"/>
<!-- Tell IE to use the latest, best version. -->
<meta http-equiv="X-UA-Compatible" content="IE=edge"/>
<!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
<meta
name="viewport"
content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no"
/>
<title>Cesium 加载天地图示例</title>
<script src="./Cesium.js"></script>
<script src="http://www.openlayers.vip/examples/resources/jquery-3.5.1.min.js"></script>
<style>
@import url(./Widgets/widgets.css);
html,
body,
#cesiumContainer {
width: 100%;
height: 100%;
margin: 0;
padding: 0;
overflow: hidden;
}
</style>
<script>
var _hmt = _hmt || [];
(function () {
var hm = document.createElement("script");
hm.src = "https://hm.baidu.com/hm.js?f80a36f14f8a73bb0f82e0fdbcee3058";
var s = document.getElementsByTagName("script")[0];
s.parentNode.insertBefore(hm, s);
})();
</script>
</head>
<body>
<button id="wmts" onClick="WMTS()">添加标准 WMTS 图层</button>
<button id="restWMTS" onClick="restWMTS()">添加 Geoserver Rest WMTS 图层</button>
<br/>
<br/>
<button id="wms" onClick="WMS()">添加 Geoserver WMS 图层</button>
<button id="wfs" onClick="WFS()">添加 Geoserver WFS 图层</button>
<button id="kml" onClick="KML()">添加 Geoserver KML 图层</button>
<div id="cesiumContainer"></div>
<script>
// 这个 tk 只能在本域名下使用
var token = '2b7cbf61123cbe4e9ec6267a87e7442f';
// 服务域名
var tdtUrl = 'https://t{s}.tianditu.gov.cn/';
// 服务负载子域
var subdomains = ['0', '1', '2', '3', '4', '5', '6', '7'];
var viewer = new Cesium.Viewer('cesiumContainer', {
shouldAnimate: true,
selectionIndicator: true,
animation: false, //动画
homeButton: false, //home键
geocoder: false, //地址编码
baseLayerPicker: false, //图层选择控件
timeline: false, //时间轴
fullscreenButton: false, //全屏显示
infoBox: false, //点击要素之后浮窗
sceneModePicker: false, //投影方式 三维/二维
navigationInstructionsInitiallyVisible: false, //导航指令
navigationHelpButton: false, //帮助信息
selectionIndicator: false, // 选择
imageryProvider: new window.Cesium.WebMapTileServiceImageryProvider({
//影像底图
url: "http://t{s}.tianditu.com/img_w/wmts?service=wmts&request=GetTile&version=1.0.0&LAYER=img&tileMatrixSet=w&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}&style=default&format=tiles&tk=" + token,
subdomains: subdomains,
layer: "tdtImgLayer",
style: "default",
format: "image/jpeg",
tileMatrixSetID: "GoogleMapsCompatible",//使用谷歌的瓦片切片方式
show: true
})
});
viewer.imageryLayers.addImageryProvider(new window.Cesium.WebMapTileServiceImageryProvider({
//影像注记
url: "http://t{s}.tianditu.com/cia_w/wmts?service=wmts&request=GetTile&version=1.0.0&LAYER=cia&tileMatrixSet=w&TileMatrix={TileMatrix}&TileRow={TileRow}&TileCol={TileCol}&style=default.jpg&tk=" + token,
subdomains: subdomains,
layer: "tdtCiaLayer",
style: "default",
format: "image/jpeg",
tileMatrixSetID: "GoogleMapsCompatible",
show: true
}));
// // 叠加国界服务
var iboMap = new window.Cesium.UrlTemplateImageryProvider({
url: tdtUrl + 'DataServer?T=ibo_w&x={x}&y={y}&l={z}&tk=' + token,
subdomains: subdomains,
tilingScheme: new window.Cesium.WebMercatorTilingScheme(),
maximumLevel: 10
});
viewer.imageryLayers.addImageryProvider(iboMap);

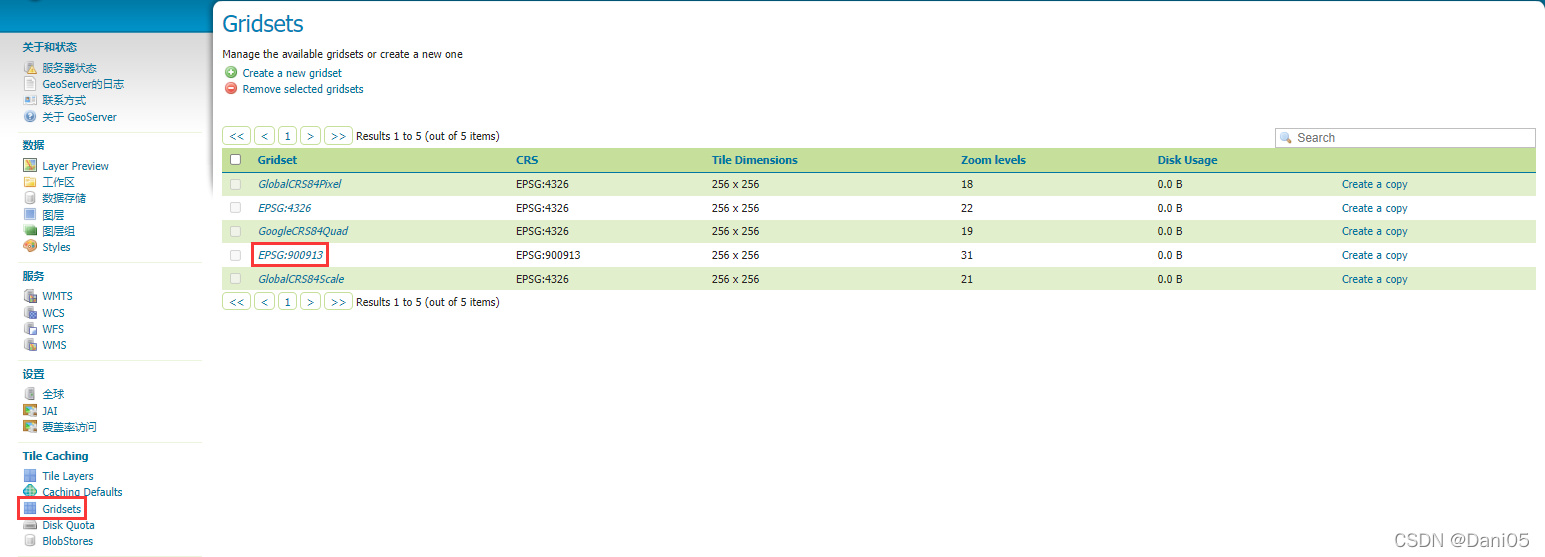

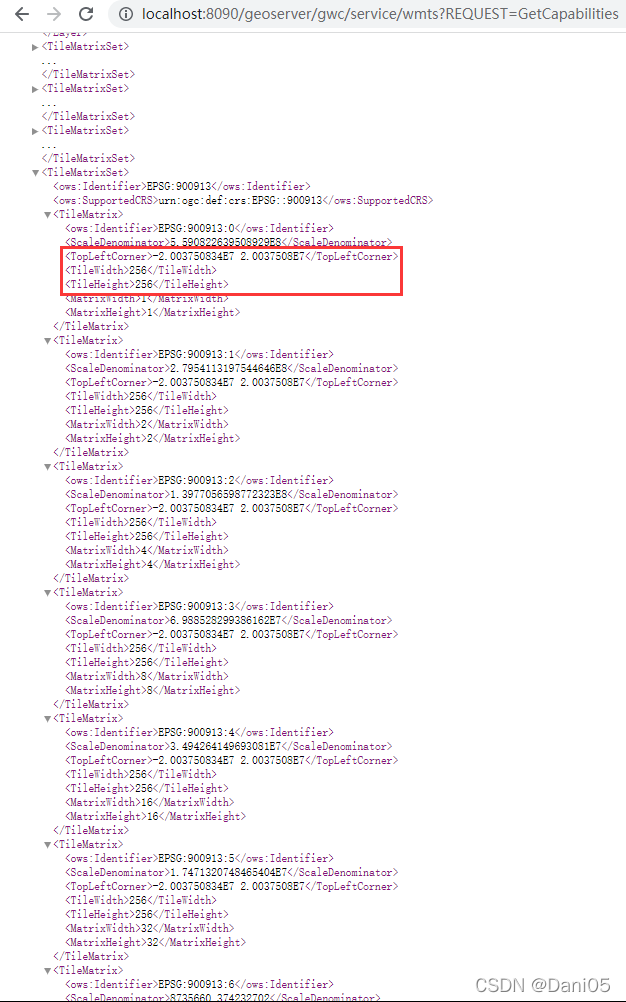

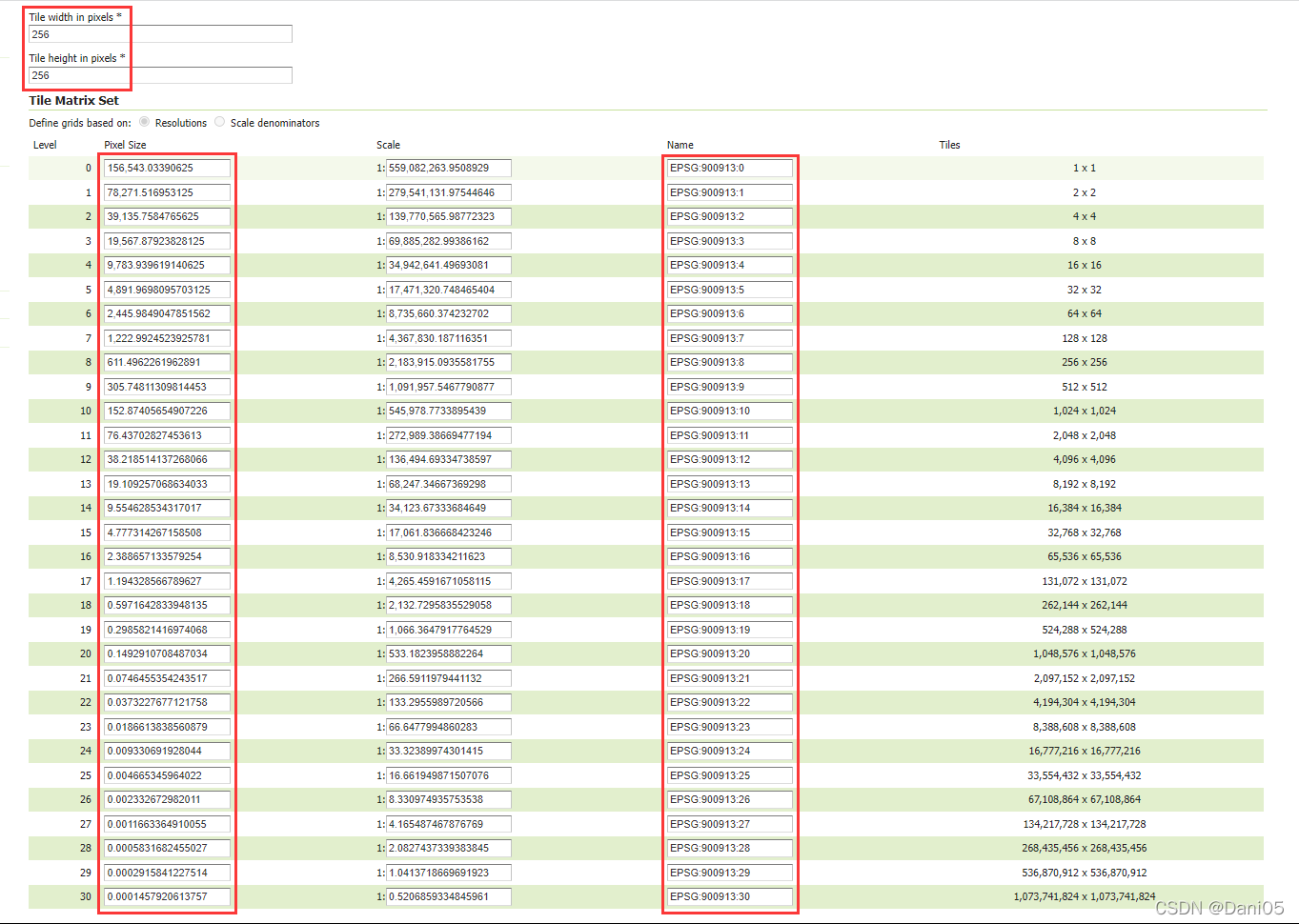

// geoserver叠加参数，EPSG码+图层等级
const TileMatrixLabels = ['EPSG:900913:0', 'EPSG:900913:1', 'EPSG:900913:2',
'EPSG:900913:3', 'EPSG:900913:4', 'EPSG:900913:5', 'EPSG:900913:6',
'EPSG:900913:7', 'EPSG:900913:8', 'EPSG:900913:9', 'EPSG:900913:10',
'EPSG:900913:11', 'EPSG:900913:12', 'EPSG:900913:13', 'EPSG:900913:14',
'EPSG:900913:15', 'EPSG:900913:16', 'EPSG:900913:17', 'EPSG:900913:18'];
// WMTS图层对象
let layerWMTS;
// 标准 WMTS 方式叠加
function WMTS(layerName) {
// cesium加载
// 注意：所有参数必填
layerWMTS = layerWMTS || viewer.imageryLayers.addImageryProvider(new Cesium.WebMapTileServiceImageryProvider({
url: 'http://openlayers.vip/geoserver/gwc/service/wmts',
layer: layerName || 'cite:xintai18',
// 强调一下，参数必填，很多博客忽略，导致不能加载成功！
style: 'raster',
format: 'image/png',
tileMatrixSetID: 'EPSG:900913',
tileMatrixLabels: TileMatrixLabels
}));
// 调节图层显隐
layerWMTSRest && (layerWMTSRest.show = false);
layerWMTS && (layerWMTS.show = true);
// 定位
flyToRectangle();
}
// WMTSRest图层
let layerWMTSRest;
// Rest 方式叠加图层
function restWMTS() {
//cesium加载
layerWMTSRest = layerWMTSRest || viewer.imageryLayers.addImageryProvider(new Cesium.WebMapTileServiceImageryProvider({
// 注意：gwc/rest/wmts 很多博客这里提供的是错的
// 注意：{TileMatrixSet}/{TileMatrixSet}:{TileMatrix} 中间有冒号
url: 'http://openlayers.vip/geoserver/gwc/rest/wmts/cite:xintai18/{style}/{TileMatrixSet}/{TileMatrixSet}:{TileMatrix}/{TileRow}/{TileCol}?format=image/png',
// 注意：这里的样式参数必须有
style: 'raster',
// 图层不传也可以
layer: 'cite:xintai18',
// 必填
format: "image/png",
// 选填
maximumLevel: 21,
// 必填
tileMatrixSetID: 'EPSG:900913'
}));
layerWMTSRest && (layerWMTSRest.show = true);
layerWMTS && (layerWMTS.show = false);
flyToRectangle();
}
let layerWMS;
// WMS 图层
function WMS() {
// 添加geoserver发布的wms数据
layerWMS = layerWMS || viewer.imageryLayers.addImageryProvider(new Cesium.WebMapServiceImageryProvider({
url: "http://openlayers.vip/geoserver/cite/wms",
// 必填
layers: "cite:xintai18",
parameters: {
transparent: true,
format: "image/png",
srs: "EPSG:4326",
// 非必填
styles: "",
},
}));
layerWMS && (layerWMS.show = true);
layerWMTS && (layerWMTS.show = false);
layerWMTSRest && (layerWMTSRest.show = false);
flyToRectangle();
}
// WFS 图层
// 这里演示北京区县数据
function WFS() {
// 这里使用 cesium加载也可以
// 因为本身数据为 4490，cesium不识别，因此使用 ajax 请求之后再渲染
$.ajax({
//点 坐标：曼哈顿
url: "http://openlayers.vip/geoserver/cite/ows?service=WFS&version=1.0.0&request=GetFeature&typeName=cite%3At_county_new&maxFeatures=50&outputFormat=application%2Fjson",
cache: false,
async: true,
success: function (data) {
// 原数据是 4490，这里替换为4326，否则 cesium 不识别4490，会报错
data.crs.properties.name = data.crs.properties.name.replace("EPSG::4490", "EPSG::4326")
var datasource = Cesium.GeoJsonDataSource.load(data);
viewer.dataSources.add(datasource);
},
error: function (data) {
alert("error");
}
});
layerWMS && (layerWMS.show = false);
layerWMTS && (layerWMTS.show = false);
layerWMTSRest && (layerWMTSRest.show = false);
// 定位到北京
flyToRectangle([
Cesium.Cartesian3.fromDegrees(
115.44302181271966,
39.251141782491445,
0
),
Cesium.Cartesian3.fromDegrees(
117.34365657834466,
40.997967954366445,
0
),
]);
}
// KML 图层
// 这里演示北京区县数据
function KML() {
var options = {
camera : viewer.scene.camera,
canvas : viewer.scene.canvas,
clampToGround: true //开启贴地
};
viewer.dataSources.add(Cesium.KmlDataSource.load('http://openlayers.vip/geoserver/cite/ows?' +
'service=WFS&version=1.0.0&request=GetFeature&typeName=cite%3At_county_new&maxFeatures=50&' +
'outputFormat=application%2Fvnd.google-earth.kml%2Bxml', options)).then(function(dataSource){
// Get the array of entities
var neighborhoodEntities = dataSource.entities.values;
for (var i = 0; i < neighborhoodEntities.length; i++) {
var entity = neighborhoodEntities[i];
if (Cesium.defined(entity.polygon)) {
// 设置颜色
entity.polygon.material = Cesium.Color.fromRandom({
red : 0.1,
maximumGreen : 0.5,
minimumBlue : 0.5,
alpha : 0.6
});
}
}
// 定位到北京
flyToRectangle([
Cesium.Cartesian3.fromDegrees(
115.44302181271966,
39.251141782491445,
0
),
Cesium.Cartesian3.fromDegrees(
117.34365657834466,
40.997967954366445,
0
),
]);
});
layerWMS && (layerWMS.show = false);
layerWMTS && (layerWMTS.show = false);
layerWMTSRest && (layerWMTSRest.show = false);
// 定位到北京
flyToRectangle([
Cesium.Cartesian3.fromDegrees(
115.44302181271966,
39.251141782491445,
0
),
Cesium.Cartesian3.fromDegrees(
117.34365657834466,
40.997967954366445,
0
),
]);
}
/**
* @description: 飞行定位到一个矩形
* @return {*}
*/
function flyToRectangle(RectangleCD) {
// 添加定位信息
RectangleCD = RectangleCD || [
Cesium.Cartesian3.fromDegrees(
104.15528644354428,
30.752166584535513,
0
),
Cesium.Cartesian3.fromDegrees(
104.27206271917905,
30.827572468324576,
0
),
];
var rec = Cesium.Rectangle.fromCartesianArray(RectangleCD);
var boundingSphere = Cesium.BoundingSphere.fromRectangle3D(rec);
viewer.camera.flyToBoundingSphere(boundingSphere, {
duration: 5,
complete: function () {
},
offset: {
heading: Cesium.Math.toRadians(0.0),
pitch: Cesium.Math.toRadians(-90),
range: 0.0,
},
});
}
</script>
</body>
</html>
# 点击请求WMTS GetFeatureInfo接口获取点选的要素信息
# 计算近似层级
Cesium 3D模式下没有层级概念，二维地图才有层级zoom，可以通过相机的高度计算近似层级
heightToZoom(height) {
let A = 40487.57;
let B = 0.00007096758;
let C = 91610.74;
let D = -40467.74;
return Math.round(D + (A - D) / (1 + Math.pow(height / C, B)));
}
# 计算点击位置瓦片行列号和像素
分辨率resolution：当前地图范围内，1像素代表实际距离多少米
切片原点在左上角，根据下图可以得到公式：

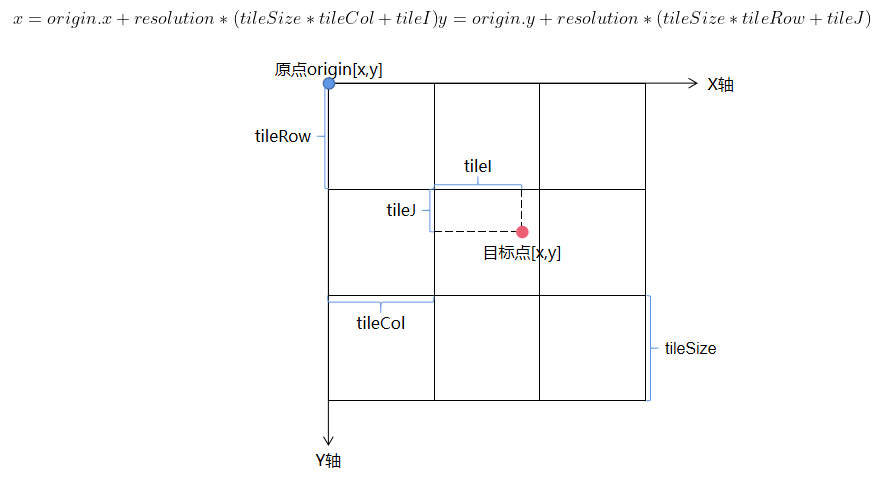

反推，根据鼠标点击坐标转换成web墨卡托[x,y]，可计算出tileCol、tileRow、tileI和tileJ
# 构建URL发送请求
const _this = this;
var handler3D = new Cesium.ScreenSpaceEventHandler(viewer.scene.canvas);
handler3D.setInputAction(function (event) {
// 获取鼠标点击位置的墨卡托坐标
// 屏幕坐标转世界坐标
let ellipsoid = viewer.scene.globe.ellipsoid;
let cartesian3 = viewer.camera.pickEllipsoid(event.position, ellipsoid);
//笛卡尔坐标转web墨卡托
let webMercator = _this.cartesianToWebMercator(cartesian3);
//获取相机高度
let height = viewer.camera.positionCartographic.height;
//计算近似层级
let zoom = _this.heightToZoom(height);
let matrixIds = [
"EPSG:900913:0",
"EPSG:900913:1",
"EPSG:900913:2",
"EPSG:900913:3",
"EPSG:900913:4",
"EPSG:900913:5",
"EPSG:900913:6",
"EPSG:900913:7",
"EPSG:900913:8",
"EPSG:900913:9",
"EPSG:900913:10",
"EPSG:900913:11",
"EPSG:900913:12",
"EPSG:900913:13",
"EPSG:900913:14",
"EPSG:900913:15",
"EPSG:900913:16",
"EPSG:900913:17",
"EPSG:900913:18",
"EPSG:900913:19",
"EPSG:900913:20",
"EPSG:900913:21",
"EPSG:900913:22",
"EPSG:900913:23",
"EPSG:900913:24",
"EPSG:900913:25",
"EPSG:900913:26",
"EPSG:900913:27",
"EPSG:900913:28",
"EPSG:900913:29",
"EPSG:900913:30",
];
let resolutions = [
156543.03390625, 78271.516953125, 39135.7584765625, 19567.87923828125,
9783.939619140625, 4891.9698095703125, 2445.9849047851562,
1222.9924523925781, 611.4962261962891, 305.74811309814453,
152.87405654907226, 76.43702827453613, 38.218514137268066,
19.109257068634033, 9.554628534317017, 4.777314267158508,
2.388657133579254, 1.194328566789627, 0.5971642833948135,
0.2985821416974068, 0.1492910708487034, 0.0746455354243517,
0.0373227677121758, 0.0186613838560879, 0.009330691928044,
0.004665345964022, 0.002332672982011, 0.0011663364910055,
0.0005831682455027, 0.0002915841227514, 0.0001457920613757,
];
let origin = [-2.003750834e7, 2.0037508e7];
let tileSize = [256, 256];
let fx = (webMercator[0] - origin[0]) / (resolutions[zoom] * tileSize[0]);
let fy = (origin[1] - webMercator[1]) / (resolutions[zoom] * tileSize[1]);
let tileCol = Math.floor(fx);
let tileRow = Math.floor(fy);
let tileI = Math.floor((fx - tileCol) * tileSize[0]);
let tileJ = Math.floor((fy - tileRow) * tileSize[1]);
let matrixId = matrixIds[zoom];
let url = "http://localhost:8090/geoserver/gwc/service/wmts?layer=Cesium:mianpian1984&style=&Request=GetFeatureInfo&Version=1.0.0&tilematrixset=EPSG:900913&InfoFormat=application/json&";
url = url + "TILEMATRIX=" + matrixId + "&TileCol=" + tileCol + "&TileRow=" + tileRow + "&I=" + tileI + "&J=" + tileJ;
//发送请求获取要素信息
_this.GetFeatureInfo(url)
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
变量matrixIds、resolutions、origin和tileSize都是影像发布后自动生成，可在如图所示位置中找到
methods中定义方法
//笛卡尔坐标转web墨卡托
cartesianToWebMercator(cartesian) {
// 将笛卡尔坐标转换为地理坐标(弧度)
let cartographic = Cesium.Cartographic.fromCartesian(cartesian);
//弧度转经纬度
cartographic.latitude = Cesium.Math.toDegrees(cartographic.latitude);
cartographic.longitude = Cesium.Math.toDegrees(cartographic.longitude);
//度转墨卡托
let earthRad = 6378137.0;
let x = ((cartographic.longitude * Math.PI) / 180) * earthRad;
let a = (cartographic.latitude * Math.PI) / 180;
let y = (earthRad / 2) * Math.log((1.0 + Math.sin(a)) / (1.0 - Math.sin(a)));
return [x, y];
},
//调用WMTS服务GetFeatureInfo接口
wmtsGetFeatureInfo(url) {
return http({
methods: "GET",
url: url,
});
}
//发送请求获取要素信息
async GetFeatureInfo(url){
const res = await wmtsGetFeatureInfo(url);
if (res.status === 200){
console.log(res.data);
}
}
# 加载不同JSON
# topojson
var viewer = new Cesium.Viewer('cesiumContainer');
var promise= viewer.dataSources.add(Cesium.GeoJsonDataSource.load('../china.topojson', {
stroke: Cesium.Color.BLACK,
fill: Cesium.Color.RED,
strokeWidth: 3,
markerSymbol: '?'
}));
viewer.flyTo(promise);
# GeoJson
var viewer = new Cesium.Viewer('cesiumContainer');
//Seed the random number generator for repeatable results.
Cesium.Math.setRandomNumberSeed(0);
var promise=Cesium.GeoJsonDataSource.load('../../Apps/testone.json');
promise.then(function(dataSource) {
viewer.dataSources.add(dataSource);
var entities = dataSource.entities.values;
var colorHash = {};
for (var i = 0; i < entities.length; i++) {
var entity = entities[i];
var name = entity.name;
var color = colorHash[name];
if (!color) {
color = Cesium.Color.fromRandom({
alpha : 1.0
});
colorHash[name] = color;
}
entity.polygon.material = color;
entity.polygon.outline = false;
entity.polygon.extrudedHeight =5000.0;
//添加label需要先设置中心点
entity.position = Cesium.Cartesian3.fromDegrees(x,y,z);
entity.label={
text:entity.name,
color : Cesium.Color.fromCssColorString('#fff'),
font:'normal 32px MicroSoft YaHei',
showBackground : true,
scale : 0.5,
horizontalOrigin : Cesium.HorizontalOrigin.LEFT_CLICK,
verticalOrigin : Cesium.VerticalOrigin.BOTTOM,
disableDepthTestDistance : 100000.0
};
}
});
viewer.flyTo(promise);
# 普通json
var viewer = new Cesium.Viewer('cesiumContainer');
Cesium.Math.setRandomNumberSeed(0);
Cesium.loadJson('/../Apps/Points.json').then(function(jsonData) {
for (var i =0 ;i<=jsonData.features.length-10; i++) {
var ifeature=jsonData.features[i];
for (var k = 0;k<ifeature.geometry.paths[0].length-10; k++) {
if (ifeature.geometry.paths[0][k].length==2) {
viewer.entities.add({
position:Cesium.Cartesian3.fromDegrees(ifeature.geometry.paths[0][k][0],
ifeature.geometry.paths[0][k][1]),
point:{
pixelSize : 10,
color :Cesium.Color.YELLOW
}
});
}
}
}
}).otherwise(function(error) {});
# 等高线/坡向/坡度
//设置viewer开启光照
viewer.scene.globe.enableLighting = true;
//定义等高线初始值
var minHeight = -414.0;
var maxHeight = 8777.0;
var contourColor = Cesium.Color.RED.clone();
var contourUniforms = {};
var shadingUniforms = {};
//定义相关处理函数
function getElevationContourMaterial() {
// Creates a composite material with both elevation shading and contour lines
return new Cesium.Material({
fabric: {
type: "ElevationColorContour",
materials: {
contourMaterial: {
type: "ElevationContour",
},
elevationRampMaterial: {
type: "ElevationRamp",
},
},
components: {
diffuse:
"contourMaterial.alpha == 0.0?elevationRampMaterial.diffuse:contourMaterial.diffuse",
alpha:
"max(contourMaterial.alpha, elevationRampMaterial.alpha)",
},
},
translucent: false,
});
}
var elevationRamp = [0.0, 0.045, 0.1, 0.15, 0.37, 0.54, 1.0];
var slopeRamp = [0.0, 0.29, 0.5, Math.sqrt(2) / 2, 0.87, 0.91, 1.0];
var aspectRamp = [0.0, 0.2, 0.4, 0.6, 0.8, 0.9, 1.0];
function getColorRamp(selectedShading) {
var ramp = document.createElement("canvas");
ramp.width = 100;
ramp.height = 1;
var ctx = ramp.getContext("2d");
var values;
if (selectedShading === "elevation") {
values = elevationRamp;
} else if (selectedShading === "slope") {
values = slopeRamp;
} else if (selectedShading === "aspect") {
values = aspectRamp;
}
var grd = ctx.createLinearGradient(0, 0, 100, 0);
grd.addColorStop(values[0], "#000000"); //black
grd.addColorStop(values[1], "#2747E0"); //blue
grd.addColorStop(values[2], "#D33B7D"); //pink
grd.addColorStop(values[3], "#D33038"); //red
grd.addColorStop(values[4], "#FF9742"); //orange
grd.addColorStop(values[5], "#ffd700"); //yellow
grd.addColorStop(values[6], "#ffffff"); //white
ctx.fillStyle = grd;
ctx.fillRect(0, 0, 100, 1);
return ramp;
}
// The viewModel tracks the state of our mini application.
var viewModel = {
enableContour: false,
contourSpacing: 50.0,
contourWidth: 2.0,
selectedShading: "none",
changeColor: function () {
contourUniforms.color = Cesium.Color.fromRandom(
{ alpha: 1.0 },
contourColor
);
},
};
// Convert the viewModel members into knockout observables.
Cesium.knockout.track(viewModel);
// Bind the viewModel to the DOM elements of the UI that call for it.
var toolbar = document.getElementById("toolbar");
Cesium.knockout.applyBindings(viewModel, toolbar);
function updateMaterial() {
var hasContour = viewModel.enableContour;
var selectedShading = viewModel.selectedShading;
var globe = viewer.scene.globe;
var material;
if (hasContour) {
if (selectedShading === "elevation") {
material = getElevationContourMaterial();
shadingUniforms = material.materials.elevationRampMaterial.uniforms;
shadingUniforms.minimumHeight = minHeight;
shadingUniforms.maximumHeight = maxHeight;
contourUniforms = material.materials.contourMaterial.uniforms;
}else {
material = Cesium.Material.fromType("ElevationContour");
contourUniforms = material.uniforms;
}
contourUniforms.width = viewModel.contourWidth;
contourUniforms.spacing = viewModel.contourSpacing;
contourUniforms.color = contourColor;
} else if (selectedShading === "elevation") {
material = Cesium.Material.fromType("ElevationRamp");
shadingUniforms = material.uniforms;
shadingUniforms.minimumHeight = minHeight;
shadingUniforms.maximumHeight = maxHeight;
}
if (selectedShading !== "none") {
shadingUniforms.image = getColorRamp(selectedShading);
}
globe.material = material;
}
updateMaterial();
Cesium.knockout.getObservable(viewModel, "enableContour").subscribe(function (newValue) {
updateMaterial();
});
Cesium.knockout.getObservable(viewModel, "contourWidth").subscribe(function (newValue) {
contourUniforms.width = parseFloat(newValue);
});
Cesium.knockout.getObservable(viewModel, "contourSpacing").subscribe(function (newValue) {
contourUniforms.spacing = parseFloat(newValue);
});
Cesium.knockout.getObservable(viewModel, "selectedShading").subscribe(function (value) {
updateMaterial();
});

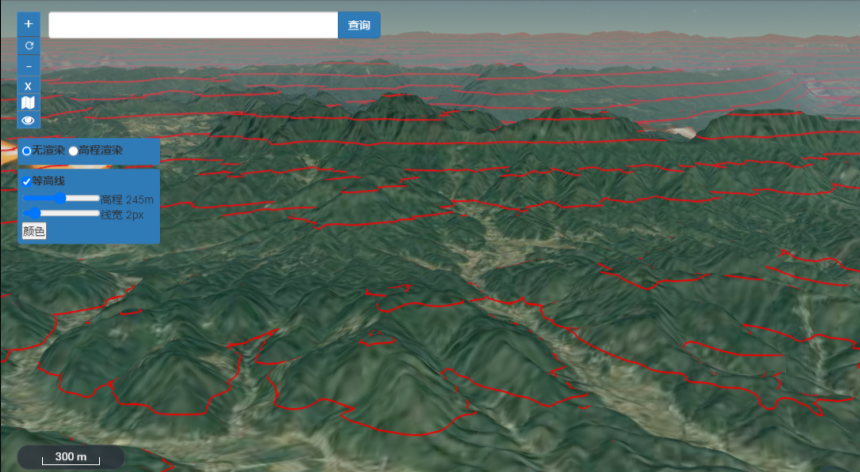

绑定页面控件
<div class="demo-container">
<label><input type="radio" name="shadingMaterials"
value="none" data-bind="checked: selectedShading">无渲染</label> <label><input
type="radio" name="shadingMaterials" value="elevation"
data-bind="checked: selectedShading">高程渲染</label>
</div>
<div class="demo-container">
<div>
<label><input type="checkbox"
data-bind="checked: enableContour">等高线</label>
</div>
<div>
高程 <input style="width: 136px; float: left; width: 100px;"
type="range" min="1.0" max="500.0" step="1.0"
data-bind="value: contourSpacing, valueUpdate: 'input', enable: enableContour">
<span data-bind="text: contourSpacing"></span>m
</div>
<div>
线宽 <input style="width: 125px; float: left; width: 100px;"
type="range" min="1.0" max="10.0" step="1.0"
data-bind="value: contourWidth, valueUpdate: 'input', enable: enableContour">
<span data-bind="text: contourWidth"></span>px
</div>
<div>
<button type="button"
data-bind="click: changeColor, enable: enableContour">颜色</button>
</div>
</div>
# 缓冲区分析

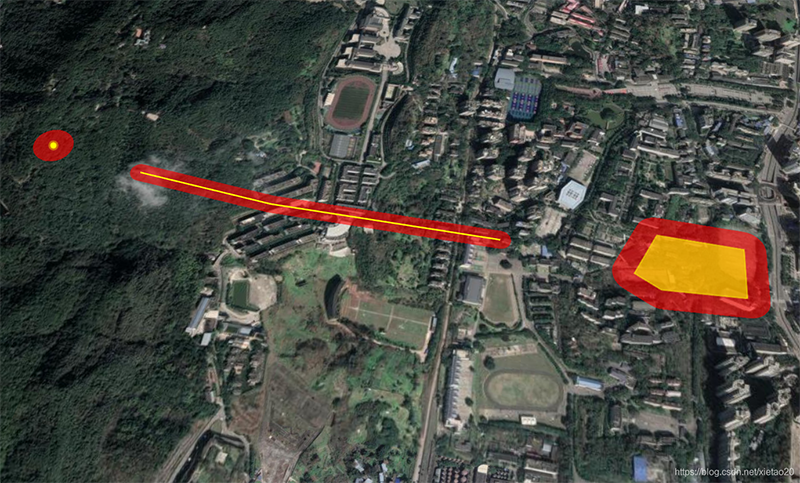

//初始化点缓冲
initPointBuffer() {
let point = [106.422638966289, 29.5698367125623];
this.addPoint(point);
let pointF = turf.point(point);
let buffered = turf.buffer(pointF, 60, { units: 'meters' });
let coordinates = buffered.geometry.coordinates;
let points = coordinates[0];
let degreesArray = this.pointsToDegreesArray(points);
this.addBufferPolyogn(Cesium.Cartesian3.fromDegreesArray(degreesArray));
},
//添加点
addPoint(point) {
this.viewer.entities.add({
position: Cesium.Cartesian3.fromDegrees(point[0], point[1], 0),
point: {
pixelSize: 10,
color: Cesium.Color.YELLOW,
outlineWidth: 3,
outlineColor: Cesium.Color.YELLOW.withAlpha(0.4),
}
});
},
//初始化线缓冲
initPolylineBuffer() {
let points = [
[106.425203158107, 29.5694914480581],
[106.428808047023, 29.569230166027],
[106.431661917416, 29.5692674920729],
[106.434708906857, 29.5693048181049]
];
let degreesArray = this.pointsToDegreesArray(points);
this.addPolyline(Cesium.Cartesian3.fromDegreesArray(degreesArray));
let polylineF = turf.lineString(points);
let buffered = turf.buffer(polylineF, 30, { units: 'meters' });
let coordinates = buffered.geometry.coordinates;
points = coordinates[0];
degreesArray = this.pointsToDegreesArray(points);
this.addBufferPolyogn(Cesium.Cartesian3.fromDegreesArray(degreesArray));
},
//添加线
addPolyline(positions) {
this.viewer.entities.add({
polyline: {
positions: positions,
width: 2,
material: Cesium.Color.YELLOW,
}
})
},
//初始化面缓冲
initPolygonBuffer() {
let points = [
[106.438549830166, 29.5701073244566],
[106.440695597377, 29.5701073244566],
[106.440738512722, 29.5688755679036],
[106.438700033871, 29.5687262630581],
[106.438034846035, 29.5690248725284],
[106.438549830166, 29.5701073244566]
];
let degreesArray = this.pointsToDegreesArray(points);
this.addPolygon(Cesium.Cartesian3.fromDegreesArray(degreesArray));
let polygonF = turf.polygon([points]);
let buffered = turf.buffer(polygonF, 60, { units: 'meters' });
let coordinates = buffered.geometry.coordinates;
points = coordinates[0];
degreesArray = this.pointsToDegreesArray(points);
this.addBufferPolyogn(Cesium.Cartesian3.fromDegreesArray(degreesArray));
},
//添加面
addPolygon(positions) {
this.viewer.entities.add({
polygon: {
hierarchy: new Cesium.PolygonHierarchy(positions),
material: Cesium.Color.YELLOW.withAlpha(0.6),
classificationType: Cesium.ClassificationType.BOTH
},
polyline: {
positions: positions,
width: 2,
material: Cesium.Color.YELLOW.withAlpha(0.4),
}
});
},
//添加缓冲面
addBufferPolyogn(positions) {
this.viewer.entities.add({
polygon: {
hierarchy: new Cesium.PolygonHierarchy(positions),
material: Cesium.Color.RED.withAlpha(0.6),
classificationType: Cesium.ClassificationType.BOTH
},
});
},
//格式转换
pointsToDegreesArray(points) {
let degreesArray = [];
points.map(item => {
degreesArray.push(item[0]);
degreesArray.push(item[1]);
});
return degreesArray;
},
# ArcGIS服务进行属性查询
在发起查询请求的时候，建议都用 post 请求，因为如果直接用 get 请求，url 的长度是有限制的，而且直接用 get 请求相对来说也不是很安全，因此建议直接都用 post 请求
//思路很简单，先获取服务的extent，再根据这个txtent去进行identify获取识别到的多图层要素
const item.url = 'xxx/xxx/xxx/MapServer'
const getExtenUrl = `${item.url}/info/iteminfo?f=pjson`;
fetch(getExtenUrl)
.then((response) => response.json())
.then((res) => {
const extent = res.extent[0][0] + ',' + res.extent[0][1] + ','
+ res.extent[1][0] + ',' + res.extent[1][1];
const requestUrl = `${item.url}/identify`;
const params = {
f: 'pjson',
tolerance: 2,
returnGeometry: false,
geometry: JSON.stringify(
{
x: degreePosition.longitude,
y: degreePosition.latitude,
spatialReference: {
wkid: 4326,
},
}
),
geometryType: 'esriGeometryPoint',
mapExtent: extent,
imageDisplay: '1920,1080,96',
sr: 4326,
layers: 'all',
};
// post数据以表单形式存储
const formData = new FormData();
Object.keys(params).forEach((key) => {
formData.append(key, params[key]);
});
fetch(requestUrl, {
method: 'POST',
body: formData,
})
.then((response) => response.json())
.then((res) => {
console.log('res1111111111', res);
if (res.results.length > 0) {
const featureList = res.results.map((item) => {
const feature = {
layerName: item.layerName,
attributes: item.attributes,
};
return feature;
});
console.log('featureList', featureList);
// 这里可以根据自己的需求进行处理
// 例如：弹出一个弹窗，展示查询到的要素信息
}
});
})
# 解决图层有遮挡覆盖问题
- cesium叠加多个图层时 图层有遮挡覆盖
//设置layerIndex,addImageryProvider的第2个参数
viewer.imageryLayers.addImageryProvider(mapboxlayer,0);
- geojson的面数据遮挡
//设置polygon拉伸高度
const highLightEntity = new Cesium.Entity({
id: 'highLightEntity',
polygon: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
material: Cesium.Color.RED,
extrudedHeight: 0
}
})
← 基础信息
